Coaxial Isolators
High Performance ✧ Low Insertion Loss ✧ Low VSWR ✧ Low Cost ✧ Compact Design ✧ High Isolation ✧ High Reliability ✧ Wide Dynamic Temperature Range
Load Isolation ✧ Module Integration ✧ Communications Applications ✧ Military Applications ✧ Cellular and Wireless Applications
| Model Number | Frequency Range (GHz) | Forward Power (W, max) | Reverse Power (W, max) | Min Isolation (dB) | Insertion Loss (dB, max.) | VSWR (max) | Temperature (℃) | Dimensions (mm) | Connectors |
| TMCI-45005000-10 | 45~50 | 10 | 1 | 12 | 1.3 | 1.8 | -40~+85 | 43*37*20 | 2.4mm(f) |
| TMCI-40004500-10 | 40~45 | 10 | 1 | 14 | 1.6 | 1.6 | -40~+85 | 43*37*20 | 2.4mm(f) |
| TMCI-29003100-10 | 29~31 | 10 | 2 | 20 | 0.8 | 1.35 | -30~+75 | 10.2*25.6*12.5 | 2.92mm(f) |
| TMCI-26504000-5 | 26.5~40 | 5 | 1 | 11 | 1.0 | 1.65 | -30~+70 | 12*12*15 | 2.92mm(f) |
| TMCI-26504000-10 | 26.5~40 | 10 | 1 | 12 | 1.7 | 1.8 | -40~+85 | 13*26*16.6 | 2.92mm(f) |
| TMCI-26502800-20 | 26.5~28 | 20 | 5 | 16 | 1 | 1.5 | -30~+75 | 15*23*15 | 2.92mm(f) |
| TMCI-25002700-20 | 25~27 | 20 | 6 | 20 | 1.0 | 1.3 | -30~+70 | 10.2*26*12.5 | 2.92mm(f) |
| TMCI-24002410-20 | 24~24.1 | 20 | 5 | 18 | 0.5 | 1.3 | -30~+75 | 15*23*15 | 2.92mm(f) |
| TMCI-23902400-20 | 23.9~24 | 20 | 5 | 18 | 0.5 | 1.3 | -30~+75 | 15*23*15 | 2.92mm(f) |
| TMCI-23002500-20 | 23~25 | 20 | 5 | 20 | 1.0 | 1.3 | -30~+75 | 10.2*26*12.5 | 2.92mm(f) |
| TMCI-22003300-10 | 22~33 | 10 | 1 | 15 | 1.6 | 1.6 | -40~+85 | 13*26*16.6 | 2.92mm(f) |
| TMCI-20202120-20 | 20.2~21.2 | 20 | 5 | 18 | 0.5 | 1.3 | -30~+75 | 15*23*15 | 2.92mm(f) |
| TMCI-18002650-10 | 18~26.5 | 10 | 2 | 20 | 0.8 | - | -30~+70 | 10.2*25.6*12.5 | 2.92mm(f) |
| TMCI-18002000-20 | 18~20 | 20 | 5 | 20 | 0.8 | 1.3 | -30~+75 | 15*23*15 | 2.92mm(f) |
| TMCI-17002200-10 | 17~22 | 10 | 1 | 15 | 1.5 | 1.4 | -40~+85 | 13*26*16.6 | SMA(f) |
| TMCI-17002200-15 | 17~22 | 15 | 2 | 17 | 0.5 | 1.3 | -30~+70 | 12*12*15 | SMA(f) |
| TMCI-10401060-10 | 10.4~10.6 | 10 | 5 | 23 | 0.3 | 1.2 | -45~+85 | 13*19*12.7 | SMA(f) |
| TMCI-08900910-60 | 8.9~9.1 | 60 | 10 | 20 | 0.4 | 1.25 | -30~+75 | 13*19*12.7 | SMA(f) |
| TMCI-08300840-60 | 8.3~8.4 | 60 | 10 | 23 | 0.3 | 1.2 | -30~+75 | 13*19*12.7 | SMA(f) |
| TMCI-08001800 | 8~18 | - | 10 | 12 | 1.4 | 1.5 | 0~+60 | 16*21.5*14 | - |
| TMCI-08001800-10 | 8~18 | 10 | 2 | 14 | 0.8 | 1.5 | -30~+70 | 12*11.5*18 | SMA(f) |
| TMCI-08001200-15 | 8~12 | 15 | 2 | 20 | 0.6 | 1.35 | -30~+70 | 12.7*12.7*19 | SMA(f) |
| TMCI-07900840-100 | 7.9~8.4 | 100 | 5 | 20 | 0.4 | 1.25 | -30~+75 | 13*19*12.7 | SMA(f) |
| TMCI-07700850-60 | 7.7~8.5 | 60 | 10 | 23 | 0.4 | 1.2 | -30~+75 | 13*19*12.7 | SMA(f) |
| TMCI-07100730-50 | 7.1~7.3 | 50 | 10 | 23 | 0.3 | 1.2 | -30~+75 | 16*23*12.7 | SMA(f) |
| TMCI-07000900-30 | 7~9 | 30 | 10 | 18 | 0.5 | 1.3 | -30~+75 | 13*19*12.7 | SMA(f) |
| TMCI-06800700-60 | 6.8~7 | 60 | 10 | 20 | 0.4 | 1.2 | -30~+75 | 13*19*12.7 | SMA(f) |
| TMCI-06700710-50 | 6.7~7.1 | 50 | 10 | 20 | 0.4 | 1.2 | -30~+75 | 16*23*12.7 | SMA(f) |
| TMCI-06600700-60 | 6.6~7 | 60 | 10 | 20 | 0.4 | 1.2 | -30~+75 | 13*19*12.7 | SMA(f) |
| TMCI-06570687-50 | 6.57~6.87 | 50 | 10/20 | 20 | 0.3 | 1.2 | -30~+75 | 16*23*12.7 | SMA(f) |
| TMCI-06001020-15 | 6~10.2 | 15 | 2 | 17 | 0.6 | 1.35 | -40~+70 | 12.7*12.7*19 | SMA(f) |
| TMCI-06001000-60 | 6~10 | 60 | 10 | 17 | 0.5 | 1.35 | -30~+75 | 13*19*12.7 | SMA(f) |
| TMCI-06001000-60A | 6~10 | 60 | 10 | 17 | 0.5 | 1.35 | -30~+75 | 13*19*12.7 | SMA(f) |
| TMCI-06000800-60 | 6~8 | 60 | 10 | 18 | 0.5 | 1.35 | -30~+75 | 13*19*12.7 | SMA(f) |
| TMCI-06000800-100 | 6~8 | 100 | 20 | 18 | 0.4 | 1.3 | -30~+75 | 21*22.5*15 | SMA(f) |
| TMCI-05800720-60 | 5.8~7.2 | 60 | 10 | 18 | 0.5 | 1.35 | -30~+75 | 15*22.5*14 | SMA(f) |
| TMCI-05800680-30 | 5.8~6.8 | 30 | 5 | 19 | 0.5 | 1.3 | -10~+60 | 21*22.5*15 | SMA |
| TMCI-05800650-50 | 5.8~6.5 | 50 | 10/20 | 20 | 0.4 | 1.25 | -30~+75 | 16*23*12.7 | SMA(f) |
| TMCI-05700590-50 | 5.7~5.9 | 50 | 10/20 | 23 | 0.3 | 1.2 | -30~+75 | 16*23*12.7 | SMA(f) |
| TMCI-05700590-60 | 5.7~5.9 | 60 | 10 | 20 | 0.4 | 1.25 | -30~+75 | 15*22.5*14 | SMA(f) |
| TMCI-05700590-100 | 5.7~5.9 | 100 | 20/100 | 23 | 0.6 | 1.25 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-05600700-50 | 5.6~7 | 50 | 10/20 | 18 | 0.5 | 1.3 | -30~+75 | 16*23*12.7 | SMA(f) |
| TMCI-05500600-100 | 5.5~6 | 100 | 20/100 | 20 | 0.6 | 1.25 | 0~+60 | 25.4*28*14 | N(f) |
| TMCI-05400620-100 | 5.4~6.2 | 100 | 20/100 | 18 | 0.6 | 1.3 | 0~+60 | 25.4*28*14 | N(f) |
| TMCI-05400590-50 | 5.4~5.9 | 50 | 10/20 | 20 | 0.4 | 1.2 | -30~+75 | 16*23*12.7 | SMA(f) |
| TMCI-05400580-100 | 5.4~5.8 | 100 | 20/100 | 20 | 0.6 | 1.25 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-05300630-100 | 5.3~6.3 | 100 | 20/100 | 18 | 0.6 | 1.3 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-05300590-100 | 5.3~5.9 | 100 | 20/100 | 20 | 0.6 | 1.2 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-05200550-50 | 5.2~5.5 | 50 | 10/20 | 20 | 0.4 | 1.25 | -30~+75 | 16*23*12.7 | SMA(f) |
| TMCI-05100590-50 | 5.1~5.9 | 50 | 10/20 | 18 | 0.5 | 1.3 | -30~+75 | 16*23*12.7 | SMA(f) |
| TMCI-05000650-100 | 5~6.5 | 100 | 20/100 | 10 | 0.6 | 1.3 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-05000600-50 | 5~6 | 50 | 10/20 | 18 | 0.6 | 1.3 | -30~+75 | 16*23*12.7 | SMA(f) |
| TMCI-05000600-60 | 5~6 | 60 | 10 | 20 | 0.4 | 1.25 | -30~+75 | 15*22.5*14 | SMA(f) |
| TMCI-05000600-100 | 5~6 | 100 | 20/100 | 18 | 0.6 | 1.3 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-04900580-100 | 4.9~5.8 | 100 | 20/100 | 20 | 0.6 | 1.25 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-04500550-60 | 4.5~5.5 | 60 | 10 | 20 | 0.4 | 1.25 | -30~+75 | 15*22.5*14 | SMA(f) |
| TMCI-04500525-100 | 4.5~5.25 | 100 | 20/100 | 20 | 0.6 | 1.25 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-04400590-100 | 4.4~5.9 | 100 | 20/100 | 20 | 0.6 | 1.25 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-04400525-100 | 4.4~5.25 | 100 | 20/100 | 20 | 0.6 | 1.2 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-04400500-100 | 4.4~5 | 100 | 20/100 | 20 | 0.6 | 1.25 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-04000800-50 | 4~8 | 50 | 10 | 18 | 0.6 | 1.35 | -30~+75 | 21*22.5*15 | SMA(f) |
| TMCI-04000600-100 | 4~6 | 100 | 20/100 | 20 | 0.6 | 1.25 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-04000500-60 | 4~5 | 60 | 10 | 20 | 0.4 | 1.25 | -30~+75 | 15*22.5*14 | SMA(f) |
| TMCI-04000500-60A | 4~5 | 60 | 10 | 20 | 0.4 | 1.25 | -10~+60 | 16*26.5*14.8 | SMA(f) |
| TMCI-04000500-100 | 4~5 | 100 | 20/100 | 20 | 0.6 | 1.25 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-03800400-100 | 3.8~4 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-03700420-60 | 3.7~4.2 | 60 | 10 | 20 | 0.4 | 1.25 | -10~+60 | 16*26.5*14.8 | SMA |
| TMCI-03700420-100 | 3.7~4.2 | 100 | 20/100 | 20 | 0.5 | 1.2 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-03650375-100 | 3.65~3.75 | 100 | 20 | 23 | 0.3 | 1.2 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-03600420-60 | 3.6~4.2 | 60 | 10 | 18 | 0.5 | 1.3 | -30~+75 | 15*22.5*14 | SMA(f) |
| TMCI-03600400-100 | 3.6~4 | 100 | 20 | 20 | 0.3 | 1.25 | -30~+75 | 25.4*28.5*15 | SMA(f) |
| TMCI-03600400-100A | 3.6~4 | 100 | 100 | 20 | 0.35 | 1.25 | -30~+75 | 25.4*28.5*15 | N(m~f) |
| TMCI-03600380-100 | 3.6~3.8 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-03400420-100 | 3.4~4.2 | 100 | 20/100 | 20 | 0.55 | 1.25 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-03400360-100 | 3.4~3.6 | 100 | 20/100 | 20 | 0.5 | 1.2 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-03400360-100A | 3.4~3.6 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-03400360-100B | 3.4~3.6 | 100 | 100 | 20 | 0.35 | 1.2 | -30~+70 | 25.4*28*14 | N(m~f) |
| TMCI-03300500-100 | 3.3~5 | 100 | 20/100 | 18 | 0.6 | 1.3 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-03300380-100 | 3.3~3.8 | 100 | 20/100 | 20 | 0.5 | 1.25 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-03300340-100 | 3.3~3.4 | 100 | 30 | 23 | 0.3 | 1.2 | -30~+75 | 25.4*28.5*15 | SMA(f) |
| TMCI-03200600-100 | 3.2~6 | 100 | 20/100 | 18 | 0.6 | 1.3 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-03100340-100 | 3.1~3.4 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-03100340-100A | 3.1~3.4 | 100 | 20 | 23 | 0.3 | 1.25 | -30~+75 | 25.4*28.5*15 | SMA(f) |
| TMCI-03000600-100 | 3~6 | 100 | 20/100 | 18 | 0.6 | 1.3 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-03000500-100 | 3~5 | 100 | 20/100 | 18 | 0.6 | 1.25 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-03000480-100 | 3~4.8 | 100 | 20/100 | 18 | 0.6 | 1.3 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-03000420-100 | 3~4.2 | 100 | 20/100 | 18 | 0.6 | 1.3 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-03000360-100 | 3~3.6 | 100 | 20/100 | 19 | 0.6 | 1.25 | -30~+70 | 25.4*28*14 | N(f) |
| TMCI-02900310-100 | 2.9~3.1 | 100 | 20 | 20 | 0.3 | 1.2 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-02900310-100A | 2.9~3.1 | 100 | 20 | 20 | 0.3 | 1.2 | -30~+75 | 32*32*15 | SMA(f) |
| TMCI-02800290-100 | 2.8~2.9 | 100 | 30 | 23 | 0.3 | 1.2 | -30~+75 | 25.4*28.5*15 | SMA(f) |
| TMCI-02700620-100 | 2.7~6.2 | 100 | 20/100 | 16 | 0.8 | 1.4 | 0~+60 | 25.4*28*14 | N(f) |
| TMCI-02700450-100 | 2.7~4.5 | 100 | 20/100 | 18 | 0.65 | 1.3 | 0~+60 | 25.4*28*14 | N(f) |
| TMCI-02700350-100 | 2.7~3.5 | 100 | 20 | 18 | 0.6 | 1.3 | -30~+75 | 25.4*28.5*15 | SMA(f) |
| TMCI-02700310-100 | 2.7~3.1 | 100 | 100 | 20 | 0.35 | 1.25 | -30~+75 | 25.4*28.5*15 | N(m~f) |
| TMCI-02700290-100 | 2.7~2.9 | 100 | 20 | 23 | 0.3 | 1.2 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-02700290-100A | 2.7~2.9 | 100 | 20 | 23 | 0.3 | 1.2 | -30~+75 | 32*32*15 | SMA(f) |
| TMCI-02600270-100 | 2.6~2.7 | 100 | 20 | 25 | 0.25 | 1.15 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-02500600-100 | 2.5~6 | 100 | 20/100 | 17 | 0.9 | 1.35 | 0~+60 | 25.4*28*14 | N(f) |
| TMCI-02500270-100 | 2.5~2.7 | 100 | 20 | 23 | 0.3 | 1.2 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-02500270-100A | 2.5~2.7 | 100 | 20 | 23 | 0.3 | 1.2 | -30~+75 | 32*32*15 | SMA(f) |
| TMCI-02400250-100 | 2.4~2.5 | 100 | 10 | 23 | 0.3 | 1.2 | -30~+75 | 20*25.4*13 | SMA(m~f) |
| TMCI-02400250-100A | 2.4~2.5 | 100 | 20 | 25 | 0.25 | 1.15 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-02400250-100B | 2.4~2.5 | 100 | 30 | 23 | 0.3 | 1.2 | -30~+75 | 25.4*28.5*15 | SMA(f) |
| TMCI-02300270-100 | 2.3~2.7 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-02300270-100A | 2.3~2.7 | 100 | 100 | 20 | 0.4 | 1.25 | -30~+75 | 25.4*28.5*15 | SMA(f) |
| TMCI-02300250-100 | 2.3~2.5 | 100 | 20 | 23 | 0.3 | 1.2 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-02200270-100 | 2.2~2.7 | 100 | 20 | 18 | 0.5 | 1.3 | -30~+75 | 30*33*15 | SMA(f) |
| TMCI-02200250-100 | 2.2~2.5 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-02200250-100A | 2.2~2.5 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 32*32*15 | SMA(f) |
| TMCI-02200230-100 | 2.2~2.3 | 100 | 30 | 23 | 0.3 | 1.2 | -30~+75 | 25.4*28.5*15 | SMA(f) |
| TMCI-02100280-100 | 2.1~2.8 | 100 | 20 | 18 | 0.5 | 1.35 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-02100270-100 | 2.1~2.7 | 100 | 20 | 20 | 0.4 | 1.25 | 0~+60 | 40*40*20 | SMA |
| TMCI-02000800-30 | 2~8 | 30 | 10 | 13 | 1.7 | 1.3 | 0~+60 | 62*36.8*19.6 | SMA(f) |
| TMCI-02000600-30 | 2~6 | 30 | 10 | 15 | 0.8 | 1.5 | 0~+60 | 62*36.8*19.6 | SMA(f) |
| TMCI-02000600-50 | 2~6 | 50 | 20 | 12 | 1.7 | 1.6 | -40~+20 | 30.5*30.5*15 | SMA(f) |
| TMCI-02000600-50A | 2~6 | 50 | 20 | 12 | 0.85 | 1.5 | +20~+70 | 30.5*30.5*15 | SMA(f) |

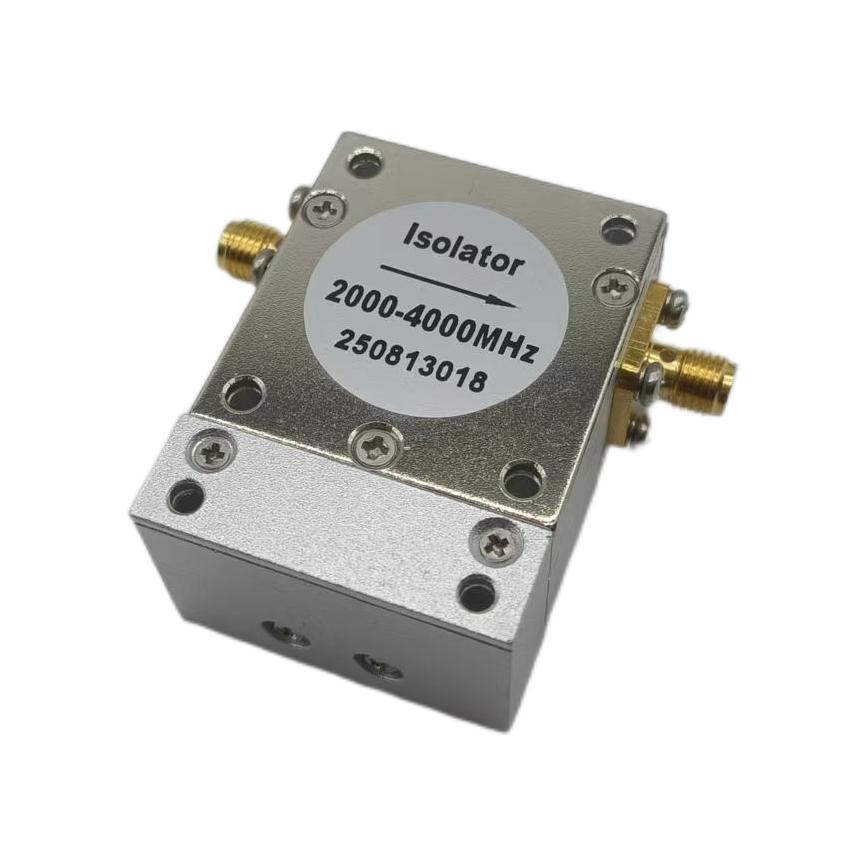

| TMCI-02000400-100 | 2~4 | 100 | 10 | 18 | 0.6 | 1.3 | 0~+60 | 32*34*21 | SMA |
| TMCI-02000400-100A | 2~4 | 100 | 10 | 18 | 0.6 | 1.3 | 0~+60 | 32*34*21 | SMA(f) |
| TMCI-02000400-100B | 2~4 | 100 | 20/100 | 18 | 0.6 | 1.3 | 0~+60 | 32*34*21 | N(f) |
| TMCI-02000300-100 | 2~3 | 100 | 20 | 19 | 0.5 | 1.25 | 0~+60 | 40*40*20 | SMA |
| TMCI-02000220-100 | 2~2.2 | 100 | 20 | 23 | 0.3 | 1.2 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-02000220-100A | 2~2.2 | 100 | 20 | 23 | 0.3 | 1.2 | -30~+75 | 32*32*15 | SMA(f) |
| TMCI-01900220-100 | 1.9~2.2 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-01900220-100A | 1.9~2.2 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 25.4*28.5*15 | SMA(f) |
| TMCI-01800300-100 | 1.8~3 | 100 | 20 | 19 | 0.5 | 1.25 | 0~+60 | 40*40*20 | SMA |
| TMCI-01800280-100 | 1.8~2.8 | 100 | 20 | 19 | 0.5 | 1.25 | 0~+60 | 40*40*20 | SMA |
| TMCI-01800220-100 | 1.8~2.2 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-01800220-100A | 1.8~2.2 | 100 | 100 | 20 | 0.4 | 1.25 | -30~+75 | 25.4*28.5*15 | SMA(f) |
| TMCI-01800220-100B | 1.8~2.2 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 32*32*15 | SMA(f) |
| TMCI-01710217-100 | 1.71~2.17 | 100 | 20 | 18 | 0.45 | 1.3 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-01700270-100 | 1.7~2.7 | 100 | 20 | 18 | 0.6 | 1.3 | 0~+60 | 40*40*20 | SMA |
| TMCI-01700190-100 | 1.7~1.9 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-01700190-100A | 1.7~1.9 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 25.4*28.5*15 | SMA(f) |
| TMCI-01700190-100B | 1.7~1.9 | 100 | 100 | 20 | 0.45 | 1.2 | -30~+75 | 25.4*28.5*15 | N(m~f) |
| TMCI-01600320-100 | 1.6~3.2 | 100 | 20 | 17 | 0.7 | 1.35 | 0~+60 | 40*40*20 | SMA |
| TMCI-01500300-100 | 1.5~3 | 100 | 20 | 18 | 0.7 | 1.3 | 0~+60 | 50.8*49.5*19 | N(f) |
| TMCI-01500300-100A | 1.5~3 | 100 | 20 | 18 | 0.6 | 1.3 | 0~+60 | 50.8*49.5*19 | SMA(f) |
| TMCI-01500250-100 | 1.5~2.5 | 100 | 20 | 18 | 0.5 | 1.3 | 0~+60 | 50.8*49.5*19 | N(f) |
| TMCI-01500250-100A | 1.5~2.5 | 100 | 20 | 18 | 0.6 | 1.3 | 0~+60 | 50.8*49.5*19 | SMA(f) |
| TMCI-01500170-100 | 1.5~1.7 | 100 | 20 | 20 | 0.4 | 1.2 | -30~+75 | 20*25.4*13 | SMA(f) |
| TMCI-01500170-XXX | 1.5~1.7 | 300/400 | 20/100/250 | 20 | 0.3 | 1.25 | -30~+75 | 35*38*15 | N(f) |
| TMCI-01400270-100 | 1.4~2.7 | 100 | 20 | 17 | 0.7 | 1.35 | 0~+60 | 50.8*49.5*19 | N(f) |
| TMCI-01400270-100A | 1.4~2.7 | 100 | 20 | 17 | 0.6 | 1.35 | 0~+60 | 50.8*49.5*19 | SMA(f) |
| TMCI-01400170-XXX | 1.4~1.7 | 300/400 | 20/100/250 | 20 | 0.3 | 1.25 | -30~+75 | 35*38*15 | N(f) |
| TMCI-01350290-100 | 1.35~2.9 | 100 | 20 | 17 | 0.7 | 1.35 | 0~+60 | 50.8*49.5*19 | N(f) |
| TMCI-01350290-100A | 1.35~2.9 | 100 | 20 | 17 | 0.6 | 1.35 | 0~+60 | 50.8*49.5*19 | SMA(f) |
| TMCI-01350270-100 | 1.35~2.7 | 100 | 20 | 17 | 0.7 | 1.35 | 0~+60 | 50.8*49.5*19 | N(f) |
| TMCI-01350270-100A | 1.35~2.7 | 100 | 20 | 17 | 0.6 | 1.35 | 0~+60 | 50.8*49.5*19 | SMA(f) |
| TMCI-01300180~100 | 1.3~1.8 | 100 | 20 | 15 | 0.6 | 1.45 | -30~+75 | 32*32*15 | SMA(f) |
| TMCI-01300180-100A | 1.3~1.8 | 100 | 20 | 15 | 0.6 | 1.45 | -30~+75 | 30*33*15 | SMA(f) |
| TMCI-01300170-XXX | 1.3~1.7 | 300/400 | 20/100/250 | 20 | 0.4 | 1.2 | -30~+75 | 35*38*15 | N(f) |
| TMCI-01200140-100 | 1.2~1.4 | 100 | 20 | 20 | 0.4 | 1.2 | -30~+75 | 20*25.4*13 | SMA |
| TMCI-01200140-100A | 1.2~1.4 | 100 | 100 | 20 | 0.4 | 1.25 | -30~+75 | 25.4*28.5*15 | SMA(f) |
| TMCI-01200140-100B | 1.2~1.4 | 100 | 100 | 23 | 0.35 | 1.2 | -30~+75 | 25.4*28.5*15 | N(m~f) |
| TMCI-01200140-XXX | 1.2~1.4 | 300/400 | 20/100/250 | 20 | 0.3 | 1.25 | -30~+75 | 35*38*15 | N(f) |
| TMCI-01100160-XXX | 1.1~1.6 | 300/400 | 20/100 | 17 | 0.5 | 1.35 | -30~+75 | 35*38*15 | N(f) |
| TMCI-01000150-XXX | 1~1.5 | 300/400 | 20/100/250 | 17 | 0.6 | 1.35 | -30~+75 | 35*38*15 | N(f) |
| TMCI-01000110-XXX | 1~1.1 | 300/400 | 20/100/250 | 23 | 0.3 | 1.2 | -30~+75 | 35*38*15 | N(f) |
| TMCI-00990115-100 | 0.99~1.15 | 100 | 100 | 20 | 0.4 | 1.25 | -30~+75 | 25.4*28.5*15 | SMA(f) |
| TMCI-00950200-100 | 0.95~2 | 100 | 20 | 16 | 0.7 | 1.4 | 0~+60 | 64*66*26 | SMA(f) |
| TMCI-00950128-XXX | 0.95~1.28 | 300/400 | 20/100/250 | 20 | 0.5 | 1.25 | -30~+75 | 35*38*15 | N(f) |
| TMCI-00920096-100 | 0.92~0.96 | 100 | 100 | 23 | 0.35 | 1.2 | -30~+75 | 25.4*28.5*15 | N(m~f) |
| TMCI-00900110-XXX | 0.9~1.1 | 300/400 | 20/100/250 | 20 | 0.4 | 1.25 | -30~+75 | 35*38*15 | N(f) |
| TMCI-00900100-XXX | 0.9~1 | 300/400 | 20/100/250 | 23 | 0.3 | 1.2 | -30~+75 | 35*38*15 | N(f) |
| TMCI-00900097-100 | 0.9~0.97 | 100 | 30 | 23 | 0.3 | 1.2 | -30~+75 | 25.4*28.5*15 | SMA(f) |
| TMCI-00850095-100 | 0.85~0.95 | 100 | 100 | 23 | 0.3 | 1.2 | -30~+75 | 25.4*28.5*15 | SMA(f) |
| TMCI-00820088-100 | 0.82~0.88 | 100 | 100 | 23 | 0.35 | 1.2 | -30~+75 | 25.4*28.5*15 | N(m~f) |
| TMCI-00800110-100 | 0.8~1.1 | 100 | 20 | 18 | 0.5 | 1.3 | -30~+75 | 45*49*18 | SMA(f) |
| TMCI-00800100-100 | 0.8~1 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 32*32*15 | SMA(f) |
| TMCI-00800100-XXX | 0.8~1 | 300/400 | 20/100/250 | 20 | 0.4 | 1.25 | -30~+75 | 35*38*15 | N(f) |
| TMCI-00800090-100 | 0.8~0.9 | 100 | 20 | 23 | 0.3 | 1.2 | -30~+75 | 32*32*15 | SMA(f) |
| TMCI-00700100-100 | 0.7~1 | 100 | 20 | 18 | 0.5 | 1.3 | -30~+75 | 45*49*18 | SMA(f) |
| TMCI-00700090-100 | 0.7~0.9 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 30*33*15 | SMA(f) |
| TMCI-00700090-XXX | 0.7~0.9 | 300/500 | 20/100/250 | 18 | 0.5 | 1.3 | -30~+75 | 35*38*15 | N(f) |
| TMCI-00700080-XXX | 0.7~0.8 | 300/500 | 20/100/250 | 23 | 0.3 | 1.2 | -30~+75 | 35*38*15 | N(f) |
| TMCI-00550070-100 | 0.55~0.7 | 100 | 20 | 18 | 0.5 | 1.3 | -30~+75 | 45*49*18 | SMA(f) |
| TMCI-00500070-XXX | 0.5~0.7 | 300/500 | 20/100/250 | 17.7 | 0.7 | 1.35 | -30~+75 | 35*38*15 | N(f) |
| TMCI-00500060-XXX | 0.5~0.6 | 300/500 | 20/100/250 | 20 | 0.4 | 1.2 | -30~+75 | 35*38*15 | N(f) |
| TMCI-00500055-100 | 0.5~0.55 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 45*49*18 | SMA(f) |
| TMCI-00400050-100 | 0.4~0.5 | 100 | 20 | 20 | 0.4 | 1.25 | -30~+75 | 45*49*18 | SMA(f) |
| TMCI-00400050-XXX | 0.4~0.5 | 300/500 | 20/100/250 | 19 | 0.5 | 1.25 | -30~+75 | 35*38*15 | N(f) |
| TMCI-00350040-XXX | 0.35~0.4 | 300/500 | 20/100/250 | 19 | 0.5 | 1.25 | -30~+75 | 35*38*15 | N(f) |
| TMCI-00300042-100 | 0.3~0.42 | 100 | 20 | 18 | 0.6 | 1.3 | -30~+75 | 45*49*18 | SMA(f) |
| TMCI-00300035-XXX | 0.3~0.35 | 300/500 | 20/100/250 | 20 | 0.6 | 1.25 | -30~+75 | 35*38*15 | N(f) |
| TMCI-00300031-200 | 0.3~0.31 | 200 | 20 | 23 | 0.2 | 1.2 | -30~+70 | 52*57.5*22 | N(f) |
| TMCI-00270028-200 | 0.27~0.28 | 200 | 20 | 23 | 0.2 | 1.2 | -30~+70 | 52*57.5*22 | SMA(f) |
| TMCI-00260033-200 | 0.26~0.33 | 200 | 20 | 20 | 0.4 | 1.25 | -30~+70 | 52*57.5*22 | SMA(f) |
| TMCI-00260033-200A | 0.26~0.33 | 200 | 20 | 20 | 0.4 | 1.25 | -30~+70 | 52*57.5*22 | N(f) |
| TMCI-00260027-200 | 0.26~0.27 | 200 | 20 | 23 | 0.2 | 1.2 | -30~+70 | 52*57.5*22 | SMA(f) |
| TMCI-235M255M-200 | 0.235~0.255 | 200 | 20 | 20 | 0.4 | 1.2 | -30~+70 | 52*57.5*22 | SMA(f) |
| TMCI-225M400M-60 | 0.225~0.4 | 60 | 20 | 18 | 0.8 | 1.3 | 0~+60 | 60*60*25.5 | SMA(f)/N(f) |
| TMCI-00220024-200 | 0.22~0.24 | 200 | 20 | 20 | 0.4 | 1.25 | -30~+70 | 52*57.5*22 | SMA(f) |
| TMCI-00220024-200A | 0.22~0.24 | 200 | 20 | 20 | 0.4 | 1.25 | -30~+70 | 52*57.5*22 | N(f) |
| TMCI-00200022-200 | 0.2~0.22 | 200 | 20 | 20 | 0.4 | 1.25 | -30~+70 | 52*57.5*22 | SMA(f) |
| TMCI-00200022-200A | 0.2~0.22 | 200 | 20 | 20 | 0.4 | 1.25 | -30~+70 | 52*57.5*22 | N(f) |
| TMCI-192M232M-200 | 0.192~0.232 | 200 | 20 | 18 | 0.6 | 1.3 | -30~+70 | 52*57.5*22 | SMA(f) |
| TMCI-180M184M-200 | 0.18~0.184 | 200 | 20 | 20 | 0.5 | 1.2 | -30~+70 | 52*57.5*22 | SMA(f) |
| TMCI-00170023-60 | 0.17~0.23 | 60 | 20 | 20 | 0.6 | 1.25 | 0~+60 | 60*60*25.5 | SMA(f)/N(f) |
| TMCI-00170023-100 | 0.17~0.23 | 100 | 20 | 20 | 0.6 | 1.25 | 0~+60 | 64*66*22 | SMA(f)/N(f) |
| TMCI-00170018-200 | 0.17~0.18 | 200 | 20 | 18 | 0.7 | 1.3 | -30~+70 | 52*57.5*22 | SMA(f) |
| TMCI-00160017-200 | 0.16~0.17 | 200 | 20 | 18 | 0.7 | 1.3 | -30~+70 | 52*57.5*22 | SMA(f) |
| TMCI-00150020-80 | 0.15~0.2 | 80 | 20 | 18 | 0.7 | 1.3 | 0~+60 | 64*66*22 | SMA(f)/N(f) |
| TMCI-00150017-60 | 0.15~0.17 | 60 | 20 | 20 | 0.4 | 1.2 | 0~+60 | 60*60*25.5 | SMA(f)/N(f) |
| TMCI-00130018-60 | 0.13~0.18 | 60 | 20 | 20 | 0.6 | 1.25 | 0~+60 | 60*60*25.5 | SMA(f)/N(f) |
| TMCI-00100014-60 | 0.1~0.14 | 60 | 20 | 18 | 1.2 | 1.3 | 0~+60 | 60*60*25.5 | SMA(f)/N(f) |
| TMCI-88M108M-60 | 0.088~0.108 | 60 | 20 | 20 | 0.6 | 1.25 | 0~+60 | 60*60*25.5 | SMA(f)/N(f) |
| TMCI-75M100M-60 | 0.075~0.1 | 60 | 20 | 18 | 1.2 | 1.3 | 0~+60 | 64*66*22 | SMA(f)/N(f) |
| TMCI-55M75M-60 | 0.055~0.075 | 60 | 20 | 18 | 1.5 | 1.3 | 0~+60 | 64*66*22 | SMA(f)/N(f) |
| TMCI-40M60M-50 | 0.04~0.06 | 50 | 20 | 18 | 2 | 1.3 | 0~+60 | 64*66*22 | SMA(f)/N(f) |
| TMCI-40M45M-60 | 0.04~0.045 | 60 | 20 | 18 | 1.8 | 1.3 | 0~+60 | 60*60*25.5 | N(f) |
| TMCI-30M40M-50 | 0.03~0.04 | 50 | 20 | 18 | 2 | 1.3 | 0~+60 | 64*66*22 | SMA(f)/N(f) |
| TMCI-30M35M-60 | 0.03~0.035 | 60 | 20 | 18 | 1.8 | 1.3 | 0~+60 | 60*60*25.5 | SMA(f) |
