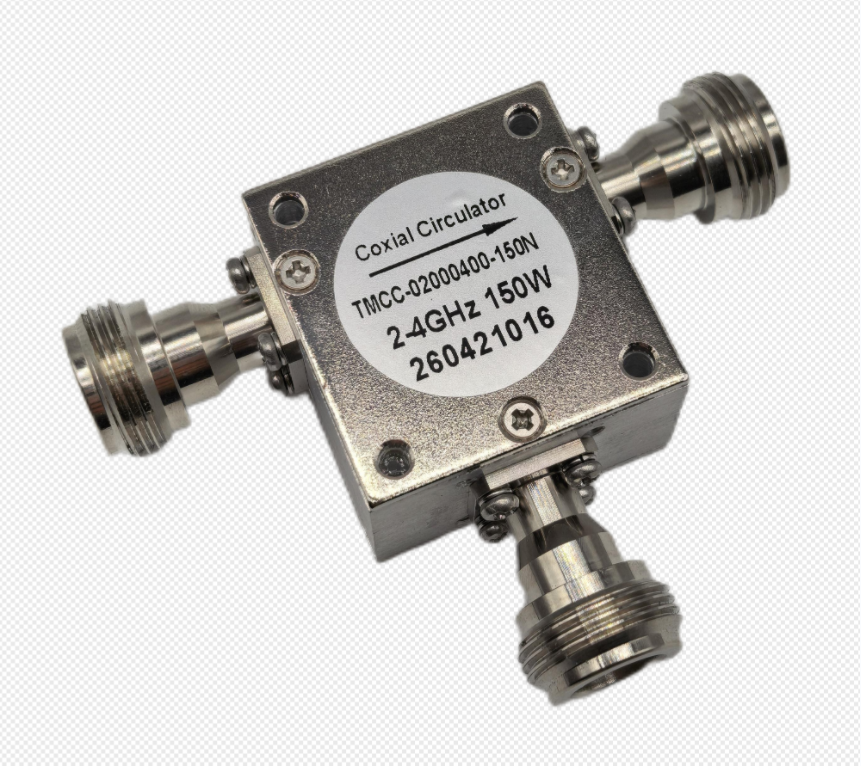

Coaxial Circulators

High Performance ✧ Low Insertion Loss ✧ Low VSWR ✧ Compact Design ✧ High Isolation ✧ High Reliability ✧ Wide Dynamic Temperature Range
Communications Applications ✧ Military Applications ✧ Cellular and Wireless Applications
Model NumberFrequency Range
(GHz)		Forward Power
(W)		Min Isolation
(dB)

Max

Insertion Loss

(dB)		VSWR
(max)		Temperature
(℃)		Dimensions
(mm)		Connectors
TMCC-4500500045~5010121.31.8
-40~+8543*37*202.4mm(f)
TMCC-4000450040~451014
1.6
1.6
-40~+85
43*37*202.4mm(f)
TMCC-1450165014.5~16.530200.41.25-10~+6012*20*13SMA
TMCC-1270149012.7~14.930190.51.3-10~+6012*20*13SMA
TMCC-1070128010.7~12.830200.41.25-10~+6012*20*13SMA
TMCC-1070127010.7~12.730200.41.2-10~+6013*19*12.7SMA
TMCC-1050125010.5~12.530200.41.25-10~+6012*20*13SMA
TMCC-1000130010~1330180.51.3-10~+6012*20*13SMA
TMCC-1000110010~1130230.31.2-10~+6013*19*12.7SMA
TMCC-093009509.3~9.530230.31.25-10~+6012*20*13SMA
TMCC-091009709.1~9.750200.41.25-30~+7513*19*12.7SMA
TMCC-091009609.1~9.650200.41.25-30~+7513*19*12.7SMA
TMCC-090011009~1120190.51.25-30~+7513*19*12.7SMA
TMCC-090010209~10.230200.41.25-10~+6013*19*12.7SMA
TMCC-080018008~1830121.41.60~+6016*21.5*14SMA
TMCC-080012008~1230180.51.3-10~+6013*19*12.7SMA
TMCC-079008407.9~8.4100200.41.25-30~+7513*19*12.7SMA
TMCC-070009007~930180.51.3-10~+6013*19*12.7SMA
TMCC-060008006~850180.51.35-30~+7513*19*12.7SMA
TMCC-058007205.8~7.260180.51.35-10~+6015*22.5*13.8SMA
TMCC-05700590A5.7~5.960200.41.25-10~+6015*22.5*13.8SMA
TMCC-05700590B5.7~5.9200200.41.25-30~+7525.4*28*14N
TMCC-056006005.6~6100200.41.25-30~+7525.4*28*14SMA
TMCC-05000600A5~6100180.41.35-30~+7525.4*28*14SMA
TMCC-05000600B5~660200.41.25-10~+6015*22.5*13.8SMA
TMCC-048005204.8~5.260200.41.25-30~+7515*22.5*13.8SMA
TMCC-045005504.5~5.560200.41.25-10~+6015*22.5*13.8SMA
TMCC-045005004.5~5100200.41.25-30~+7525.4*28*14SMA
TMCC-044005004.4~560200.41.25-30~+7515*22.5*13.8SMA
TMCC-040008004~850180.61.35-10~+6021*22.5*15SMA
TMCC-040006004~660180.51.3-30~+7525.4*28*14SMA
TMCC-040005004~560180.51.3-10~+6015*22.5*13.8SMA
TMCC-036004203.6~4.260180.51.3-10~+6015*22.5*13.8SMA
TMCC-036004003.6~4100200.31.25-30~+7520*25.4*15SMA
TMCC-036004003.6~4100200.351.25-30~+7525.4*28.5*15SMA
TMCC-034003803.4~3.8100200.41.25-30~+7525.4*28.5*15SMA
TMCC-03400360A3.4~3.6100200.31.2-30~+7520*25.4*15SMA
TMCC-03400360B3.4~3.6100200.31.2-30~+7525.4*28.5*15SMA
TMCC-033003803.3~3.8100200.451.3-30~+7525.4*28.5*15SMA
TMCC-03100340A3.1~3.4100200.31.2-30~+7520*25.4*15SMA
TMCC-03100340B3.1~3.4100200.31.2-30~+7525.4*28.5*15SMA
TMCC-030006003~660180.51.35-30~+7525.4*28*14SMA
TMCC-029003302.9~3.3100200.41.25-30~+7525.4*28.5*15SMA
TMCC-02800300A2.8~3100230.31.2-30~+7530*33*15SMA
TMCC-02800300B2.8~3100230.31.2-30~+7532*32*15SMA
TMCC-02800300C2.8~3100230.31.2-30~+7534*34*22SMA
TMCC-027006202.7~6.2200160.81.4-10~+6025.4*28*14SMA
TMCC-027003302.7~3.3100200.41.25-30~+7525.4*28.5*15SMA
TMCC-02700310A2.7~3.1100200.31.25-30~+7520*25.4*15SMA
TMCC-02700310B2.7~3.1100200.41.25-30~+7525.4*28.5*15SMA
TMCC-02700290A2.7~2.9100230.31.2-30~+7530*33*15SMA
TMCC-02700290B2.7~2.9100230.31.2-30~+7532*32*15SMA
TMCC-02700290C2.7~2.9100230.31.2-30~+7534*34*22SMA
TMCC-02700290D2.7~2.9300230.31.2-30~+7525.4*28.5*15N
TMCC-026003402.6~3.4100200.51.25-30~+7525.4*28.5*15SMA
TMCC-025003802.5~3.860180.61.30~+6032*34*21SMA
TMCC-02500270A2.5~2.7100230.31.2-30~+7532*32*15SMA
TMCC-02500270B2.5~2.7100230.31.2-30~+7520*25.4*15SMA
TMCC-02500270C2.5~2.7100230.31.2-30~+7534*34*22SMA
TMCC-02500270D2.5~2.7100230.31.2-30~+7530*33*15SMA
TMCC-02500270E2.5~2.7100230.31.2-30~+7525.4*28.5*15SMA
TMCC-02500270F2.5~2.7100230.31.2-30~+7525.4*28.5*15N
TMCC-02500270G2.5~2.7200230.31.2-30~+7525.4*28.5*15N
TMCC-024002702.4~2.760200.41.25-30~+7525.4*28.5*15SMA
TMCC-02400250A2.4~2.5100250.251.15-30~+7520*25.4*15SMA
TMCC-02400250B2.4~2.5300230.31.2-30~+7525.4*28.5*15N
TMCC-023504002.35~4120180.41.35-20~+6032*34*21N
TMCC-02300270A2.3~2.7100200.41.25-30~+7530*33*15SMA
TMCC-02300270B2.3~2.7100200.41.25-30~+7534*34*22SMA
TMCC-02300270C2.3~2.7100230.41.25-30~+7532*32*15SMA
TMCC-02300250A2.3~2.5100230.351.2-30~+7525.4*28.5*15SMA
TMCC-02300250B2.3~2.5300200.41.25-30~+7525.4*28.5*15N
TMCC-023002402.3~2.4100230.31.2-30~+7525.4*28.5*15SMA
TMCC-02200240A2.2~2.4100230.31.2-30~+7530*33*15SMA
TMCC-02200240B2.2~2.4100230.31.2-30~+7532*32*15SMA
TMCC-02200240C2.2~2.4100230.31.2-30~+7534*34*22SMA
TMCC-022002502.2~2.5100200.351.2-30~+7525.4*28.5*15SMA
TMCC-02100270A2.1~2.7100180.51.35-30~+7530*33*15SMA
TMCC-02100270B2.1~2.7100180.51.35-30~+7532*32*15SMA
TMCC-02100270C2.1~2.7100180.51.35-30~+7534*34*22SMA
TMCC-020004002~4100170.61.35+5~+4532*34*21SMA
TMCC-020003002~3100170.61.350~+6032*34*21SMA
TMCC-020002402~2.4100200.41.25-30~+7525.4*28.5*15N
TMCC-019202171.92~2.17100200.41.25-30~+7525.4*28.5*15SMA
TMCC-019002301.9~2.3100200.41.25-30~+7525.4*28.5*15N
TMCC-01900220A1.9~2.2100200.41.25-30~+7532*32*15SMA
TMCC-01900220B1.9~2.2100200.41.25-30~+7520*25.4*15SMA
TMCC-01900220C1.9~2.2100200.41.25-30~+7534*34*22SMA
TMCC-01900220D1.9~2.2100200.41.25-30~+7525.4*28.5*15SMA
TMCC-01900220E1.9~2.2100200.41.25-30~+7530*33*15SMA
TMCC-01900220F1.9~2.2300200.41.25-30~+7525.4*28.5*15N
TMCC-01700230A1.7~2.3100200.51.25-30~+7530*33*15SMA
TMCC-01700230B1.7~2.3100200.51.25-30~+7534*34*22SMA
TMCC-01700230C1.7~2.3100200.51.25-30~+7532*32*15SMA
TMCC-017002201.7~2.2100200.41.25-30~+7525.4*28.5*15N
TMCC-01700190A1.7~1.9100200.41.25-30~+7520*25.4*15SMA
TMCC-01700190B1.7~1.9100200.41.25-30~+7525.4*28.5*15SMA
TMCC-01700190C1.7~1.9100200.41.25-30~+7525.4*28.5*15N
TMCC-01700190D1.7~1.9300200.41.25-30~+7525.4*28.5*15N
TMCC-01400170A1.4~1.7100200.451.25-30~+7530*33*15SMA
TMCC-01400170B1.4~1.7100200.451.25-30~+7532*32*15SMA
TMCC-01400170C1.4~1.7100200.451.25-30~+7534*34*22SMA
TMCC-01350185A1.35~1.85100150.61.45-30~+7530*33*15SMA
TMCC-01350185B1.35~1.85100150.61.45-30~+7532*32*15SMA
TMCC-01350185C1.35~1.85100150.61.45-30~+7534*34*22SMA
TMCC-01350185D1.35~1.85100200.551.25-30~+7535*38*15SMA
TMCC-013001401.3~1.4100230.31.2-30~+7525.4*28.5*15SMA
TMCC-01290131A1.29~1.31100250.251.15-30~+7530*33*15SMA
TMCC-01290131B1.29~1.31100250.251.15-30~+7532*32*15SMA
TMCC-01290131C1.29~1.31100250.251.15-30~+7534*34*22SMA
TMCC-012101281.215~1.285100200.31.25-30~+7525.4*28.5*15SMA
TMCC-012001401.2~1.4100200.351.25-30~+7525.4*28.5*15SMA
TMCC-011501351.15~1.35100200.51.25-30~+7525.4*28.5*15SMA
TMCC-01030109A1.03~1.09100250.251.15-30~+7530*33*15SMA
TMCC-01030109B1.03~1.09100250.251.15-30~+7534*34*22SMA
TMCC-01030109C1.03~1.09100250.251.15-30~+7532*32*15SMA
TMCC-010002001~2100170.61.4-10~+6064*66*26SMA/N
TMCC-010001101~1.1200230.251.2-30~+7535*38*15N
TMCC-009901150.99~1.15100200.41.25-30~+7525.4*28.5*15SMA
TMCC-00960126A0.96~1.26100200.451.25-30~+7530*33*15SMA
TMCC-00960126B0.96~1.26100200.451.25-30~+7532*32*15SMA
TMCC-00960126C0.96~1.26100200.451.25-30~+7534*34*22SMA
TMCC-009601230.96~1.23200200.41.25-30~+7535*38*15SMA
TMCC-00960121A0.96~1.215100210.31.2-30~+7530*33*15SMA
TMCC-00960121B0.96~1.215100210.31.2-30~+7532*32*15SMA
TMCC-00960121C0.96~1.215100210.31.2-30~+7534*34*22SMA
TMCC-00960121D0.96~1.215250200.41.25-30~+7535*38*15N
TMCC-009502000.95~2100160.651.4-10~+6064*64*26SMA/N
TMCC-00950145A0.95~1.45100150.61.45-30~+7530*33*15SMA
TMCC-00950145B0.95~1.45100150.61.45-30~+7534*34*22SMA
TMCC-00950145C0.95~1.45100150.61.45-30~+7532*32*15SMA
TMCC-009501280.95~1.28150200.41.25-30~+7535*38*15SMA
TMCC-009200960.92~0.96100230.31.2-30~+7525.4*28.5*15SMA
TMCC-009000920.902~0.928100230.31.2-30~+7525.4*28.5*15SMA
TMCC-00890096A0.89~0.96100250.251.15-30~+7530*33*15SMA
TMCC-00890096B0.89~0.96100250.251.15-30~+7532*32*15SMA
TMCC-00890096C0.89~0.96100250.251.15-30~+7534*34*22SMA
TMCC-008800930.88~0.93100230.31.2-30~+7525.4*28.5*15SMA
TMCC-008200960.82~0.9660200.41.25-30~+7525.4*28.5*15SMA
TMCC-008200880.82~0.88100230.31.2-30~+7525.4*28.5*15SMA
TMCC-008100890.81~0.891000250.51.25-30~+7580*80*347/16
TMCC-008001100.8~1.1200180.51.3-30~+7045*49*18N
TMCC-00800100A0.8~160180.61.3-30~+7525.4*28.5*15N
TMCC-00800100B0.8~1100200.41.25-30~+7530*33*15SMA
TMCC-00800100C0.8~1100200.41.25-30~+7532*32*15SMA
TMCC-00800100D0.8~1100200.41.25-30~+7534*34*22SMA
TMCC-00800100E0.8~1200200.41.2-30~+7045*49*18N
TMCC-007001000.7~1200180.51.3-30~+7045*49*18N
TMCC-00700090A0.7~0.9100200.41.25-30~+7530*33*15SMA
TMCC-00700090B0.7~0.9100200.41.25-30~+7532*32*15SMA
TMCC-00700090C0.7~0.9100200.41.25-30~+7534*34*22SMA
TMCC-00700090D0.7~0.9100200.41.2-30~+7535*38*15SMA
TMCC-00700090E0.7~0.9200200.41.25-30~+7045*49*18N
TMCC-006900860.69~0.86100200.41.2-30~+7535*38*15N
TMCC-006000800.6~0.8100190.51.3-30~+7535*38*15SMA
TMCC-006000700.6~0.7100230.31.2-30~+7535*38*15SMA
TMCC-005800720.58~0.72100200.41.2-30~+7535*38*15N
TMCC-005000700.5~0.7200180.51.3-30~+7045*49*18N
TMCC-004700610.47~0.61100200.451.25-30~+7535*38*15N
TMCC-00470060A0.47~0.608100200.41.25-30~+7535*38*15SMA
TMCC-00470060B0.47~0.608100200.41.25-30~+7535*38*15N
TMCC-004700530.47~0.53100200.41.2-30~+7535*38*15SMA
TMCC-00450046A0.455~0.465100230.31.2-30~+7535*38*15N
TMCC-00450046B0.455~0.46100300.41.25-30~+7535*38*15SMA
TMCC-004500550.45~0.55100200.41.25-30~+7535*38*15SMA
TMCC-004300440.43~0.44100230.31.2-30~+7535*38*15N
TMCC-00410004150.41~0.415100300.41.25-30~+7535*38*15SMA
TMCC-004000500.4~0.5200200.41.25-30~+7045*49*18N
TMCC-00400047A0.4~0.47100200.41.25-30~+7535*38*15N
TMCC-00400047B0.4~0.47100200.41.2-30~+7535*38*15SMA
TMCC-00400047C0.4~0.47200200.41.25-30~+7045*49*18N
TMCC-004000420.4~0.42100230.31.2-30~+7535*38*15N
TMCC-003800450.38~0.45100200.51.25-30~+7535*38*15SMA
TMCC-003800410.38~0.41100200.41.25-30~+7535*38*15N
TMCC-00380039A0.38~0.39100230.41.2-30~+7535*38*15SMA
TMCC-00380039B0.38~0.39100230.31.2-30~+7535*38*15N
TMCC-00361003660.361~0.365200300.21.15-30~+7045*49*18N
TMCC-003500400.35~0.4100200.51.25-30~+7535*38*15N
TMCC-003100340.31~0.34100180.61.3-30~+7535*38*15N
TMCC-003000420.3~0.42200180.61.3-30~+7045*49*18N
TMCC-003000400.3~0.4200180.61.3-30~+7045*49*18N
TMCC-002600330.26~0.33100200.41.25-30~+7052*57.5*22N
TMCC-00220040A0.225~0.4100180.81.3-10~+6060*60*25.5N
TMCC-00220040B0.225~0.4100180.81.3-10~+6060*60*25.5SMA
TMCC-00220040C0.225~0.4100180.81.30~+6064*66*22N
TMCC-002200240.22~0.24100200.41.25-30~+7052*57.5*22N
TMCC-002000220.2~0.22100200.41.25-30~+7052*57.5*22N
TMCC-001900230.192~0.232100180.61.3-30~+7052*57.5*22N
TMCC-00170023A0.17~0.23100200.61.25-10~+6060*60*25.5SMA
TMCC-00170023B0.17~0.23100200.61.25-10~+6060*60*25.5N
TMCC-00170023C0.17~0.23100200.61.250~+6064*66*22N
TMCC-00160017A0.166~0.172100200.61.25-10~+6060*60*25.5N
TMCC-001600190.16~0.191000200.51.25-30~+7580*80*347/16
TMCC-00160017B0.16~0.17100180.71.3-30~+7052*57.5*22N
TMCC-001500180.15~0.181000190.61.25-30~+7580*80*347/16
TMCC-00150017A0.15~0.17100200.41.2-10~+6060*60*25.5N
TMCC-00150017B0.15~0.17100200.41.2-10~+6060*60*25.5SMA
TMCC-00150017C0.15~0.17100200.41.20~+6064*66*22N
TMCC-001400160.146~0.166100200.61.25-10~+6060*60*25.5N
TMCC-00130017A0.136~0.174100200.61.25-10~+6060*60*25.5N
TMCC-00130017B0.136~0.174100200.51.25-10~+6060*60*25.5SMA
TMCC-00130017C0.136~0.174100200.51.250~+6064*66*22N
TMCC-00130018A0.13~0.18100200.61.25-10~+6060*60*25.5N
TMCC-00130018B0.13~0.18100200.61.25-10~+6060*60*25.5SMA
TMCC-00130018C0.13~0.18100200.61.250~+6064*66*22N
TMCC-00110013A0.116~0.138100200.61.25-10~+6060*60*25.5N
TMCC-00110013B0.116~0.138100200.61.25-10~+6060*60*25.5SMA
TMCC-00110013C0.116~0.138100200.61.250~+6064*66*22N
TMCC-00100011A0.108~0.118100200.51.2-10~+6060*60*25.5SMA
TMCC-00100011B0.108~0.118100200.51.2-10~+6060*60*25.5N
TMCC-00100011C0.108~0.118100200.51.20~+6064*66*22N
TMCC-00100014A0.1~0.14100181.21.3-10~+6060*60*25.5N
TMCC-00100014B0.1~0.14100181.21.3-10~+6060*60*25.5SMA
TMCC-00100014C0.1~0.14100181.21.30~+6064*66*22N
TMCC-90M0011A0.09~0.11100200.61.250~+6064*66*22N
TMCC-90M0011B0.09~0.11100200.61.250~+6064*66*22N
TMCC-87M108MA0.087~0.108100200.651.25-10~+6060*60*25.5N
TMCC-87M108MB0.087~0.108100200.651.25-10~+6060*60*25.5SMA
TMCC-75M80M0.075~0.08100181.81.3-10~+6060*60*25.5SMA
TMCC-70M90M0.07~0.09100180.71.30~+6064*66*22N
TMCC-55M60M0.055~0.06100181.81.3-10~+6060*60*25.5SMA


Prev: None Next: Drop-in Circulators

Contact Us:

Addr：1610, 16/F, Unit 1, Bldg. 1, No. 45, Section 4, South Renmin Road, Wuhou District, Chengdu 610041, China

Tel：+86 183 1201 5097

Email：sales@titan-microwave.com, info@titan-microwave.com

Copyright 2023 © TITAN MICROWAVE INC.
