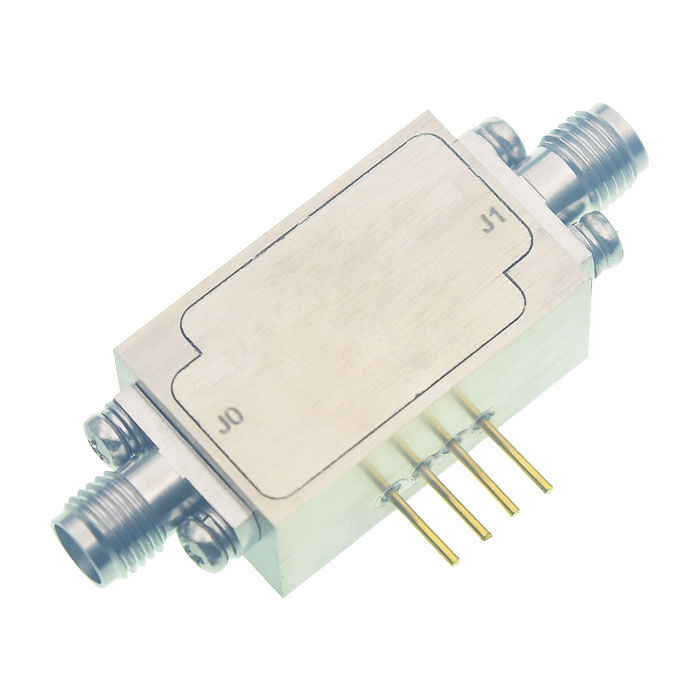

PIN DIODE SWITCHES

Features：Low Loss ✧ Low VSWR ✧ High Isolation Absorptive and Reflective ✧ Fast Switching Speed ✧ Compact Size ✧ Customization Available upon Request

Applications：5G Systems ✧ Radar Systems ✧ Communication Systems ✧ Automatic Test Equipment ✧ Switching Network

Model Number	Frequency Range (GHz)	Switch Type	Insertion Loss (dB, max)	Input Power (W)	Isolation (dB, min)	VSWR (max)	Switching Time (nsec, max)	Connector	Temperature (℃)
TMPS1-00020300-S	0.02~3	SPST	2.4	0.2	60	2	100	SMA(f)	-40~+85
TMPS1-01001800-S	1~18	SPST	2.8	1	70	2	100	SMA(f)	-55~+85
TMPS1-02000600-S	2~6	SPST	1.8	0.2	60	1.6	100	SMA(f)	-40~+85
TMPS1-02001800-S	2~18	SPST	3.0	0.2	60	2	100	SMA(f)	-40~+85
TMPS1-06001800-S	6~18	SPST	2.8	0.2	60	2	100	SMA(f)	-40~+85
TMPS2-00000600-R	DC~6	SPDT	1.3	40	23	1.5	200	SMA(f)	-40~+85
TMPS2-00004000-R	DC~40	SPDT	4.0	0.3	40	2.0	500	SMA(f)	-40~+85
TMPS2-1M30M-1000N-R	0.001~0.03	SPDT	0.5	1000	60	1.5	10us	N(f)	-
TMPS2-5M30M-100S-R	0.005~0.03	SPDT	0.6	100	85	1.5	3us	SMA(f)	-
TMPS2-00020052-100S	0.02~0.52	SPDT	0.5	100	60	1.5	10us	SMA(f)	-40~+70
TMPS2-00020050-SR	0.02~0.5	SPDT	1.5	0.2	80	1.52	30	SMA(f)	-55~+85
TMPS2-00020052-50S-R	0.02~0.52	SPDT	0.8	50	50	1.4	3us	SMA(f)	-
TMPS2-00020100-0.1S-R	0.02~1	SPDT	1.5	0.1	70	1.5	50	SMA(f)	-
TMPS2-00020100-10S-R	0.02~1	SPDT	1.5	10	60	1.5	1us	SMA(f)	-
TMPS2-00020300-S	0.02~3	SPDT	2.4	0.2	60	2	100	SMA(f)	-40~+70
TMPS2-00030050-10S-R	0.03~0.5	SPDT	0.6	10	70	1.6	1ms	SMA(f)	-
TMPS2-00030052-150S-R	0.03~0.52	SPDT	1.1	150/10	45	1.6	4us	SMA(f)	-
TMPS2-00030052-150	0.03~0.52	SPDT	0.6	150	25	1.3	4us	0.8mm	-
TMPS2-00100060-60N-R	0.1~0.6	SPDT	0.8	60/5	25/60	1.35	1us	N(f)	-
TMPS2-00100100-25S-R	0.1~1	SPDT	0.6	25	-	1.6	1us	SMA(f)	-
TMPS2-00105000-S	0.1~50	SPDT	7.5	0.2	50	3	100	2.4mm(f)	-40~+85
TMPS2-00150017-31S-R	0.15~0.17	SPDT	1.0	45dBm	-	1.3	1ms	SMA(f)	-
TMPS2-00200050-200	0.2~0.5	SPDT	0.3	200	40	1.2	-	-	-
TMPS2-00200600-R	0.2~6	SPDT	2.0	0.2	75	-	100	SMA(f)	-40~+85
TMPS2-00200600-S	0.2~6	SPDT	2.5	0.2	75	-	100	SMA(f)	-40~+85
TMPS2-00205000-R	0.2~50	SPDT	8.0	0.2	60	-	100	2.4mm(f)	-40~+85
TMPS2-00205000-S	0.2~50	SPDT	9.0	0.2	60	-	100	2.4mm(f)	-40~+85
TMPS2-00400600-2A	0.4~6	SPDT	2.0	2.0	80	1.5	200	SMA(f)	-55~+85
TMPS2-00400800-2A	0.4~8	SPDT	2.5	2.0	80	1.5	200	SMA(f)	-55~+85
TMPS2-00400800-2S	0.4~8	SPDT	2.5	2.0	80	1.5	200	SMA(f)	-55~+85
TMPS2-00401800-1A	0.4~18	SPDT	4.0	1.0	70	2.0	200	SMA(f)	-40~+70
TMPS2-00600130-2KWS	0.606~1.3	SPDT	0.8	2000(PW)	50	1.5	2us	SMA(f)	-
TMPS2-00690123-1500	0.69~1.23	SPDT	0.6	1500(PW)	50	1.3	10us	SMP	-
TMPS2-00700122-1500S	0.7~1.224	SPDT	0.8	1500(PW)	50	1.5	2us	SMA(f)	-
TMPS2-00800160-100S	0.8~1.6	SPDT	1.0	100	50	1.5	2us	SMA(f)	-40~+70
TMPS2-00900120-1000	0.9~1.2	SPDT	0.5	1000(PW)	50	1.3	20ms	SMA(f)	-
TMPS2-00900130-1000	0.9~1.3	SPDT	0.8	1000(PW)	60	1.4	1us	SMA(f)	-
TMPS2-00960113-1200	0.96~1.13	SPDT	0.5	1200(PW)	20	1.3	500ns	-	-
TMPS2-01001800-R	1~18	SPDT	2.6	20	26	2.0	200	SMA(f）	-40~+85
TMPS2-01001800-S	1~18	SPDT	2.8	1.0	70	2	100	SMA(f)	-55~+85
TMPS2-02000300-10S	2~3	SPDT	1.0	10	40	1.5	200	SMA(f)	-40~+70
TMPS2-02000600-SA	2~6	SPDT	1.8	0.2	70	1.3	100	SMA(f)	-40~+70
TMPS2-02000600-SB	2~6	SPDT	1.8	0.2	60	1.6	100	SMA(f)	-40~+70
TMPS2-02001800-S	2~18	SPDT	3.0	0.2	60	2	100	SMA(f)	-40~+70
TMPS2-02003000-S	2~30	SPDT	5.0	0.1	50	2.2	800	2.92mm(f)	-40~+70
TMPS2-06001200-R	6~12	SPDT	3.0	0.2	75	-	100	SMA(f)	-40~+85
TMPS2-06001200-S	6~12	SPDT	3.5	0.2	75	-	100	SMA(f)	-40~+85
TMPS2-06001800-S	6~18	SPDT	2.8	0.2	60	2	100	SMA(f)	-40~+70
TMPS2-06005000-R	6~50	SPDT	7.0	0.2	60	-	100	2.4mm(f)	-40~+85
TMPS2-06005000-S	6~50	SPDT	8.0	0.2	60	-	100	2.4mm(f)	-40~+85
TMPS2-08001200-100R	8~12	SPDT	1.4	100	40	1.5	2us	SMA(f)	-40~+70
TMPS2-12001800-R	12~18	SPDT	4.0	0.2	70	-	100	SMA(f)	-40~+85
TMPS2-12001800-S	12~18	SPDT	4.5	0.2	70	-	100	SMA(f)	-40~+85
TMPS2-18002650-R	18~26.5	SPDT	5.0	0.2	65	-	100	SMA(f)	-40~+85
TMPS2-18002650-S	18~26.5	SPDT	5.5	0.2	65	-	100	SMA(f)	-40~+85
TMPS2-26504000-R	26.5~40	SPDT	6.6	0.2	65	-	100	2.92mm(f)	-40~+85
TMPS2-26504000-S	26.5~40	SPDT	7.5	0.2	65	-	100	2.92mm(f)	-40~+85
TMPS3-00020300-S	0.02~3	SP3T	2.8	0.2	60	2	100	SMA(f)	-40~+70
TMPS3-00400600-2S	0.4~6	SP3T	2.0	2	80	1.5	200	SMA(f)	-55~+85
TMPS3-00400800-2A	0.4~8	SP3T	2.8	2	80	1.5	200	SMA(f)	-55~+85
TMPS3-01001800-S	1~18	SP3T	3.0	1	70	2	100	SMA(f)	-55~+85
TMPS3-02000600-S	2~6	SP3T	2.0	0.2	60	1.8	100	SMA(f)	-40~+70
TMPS3-02001800-S	2~18	SP3T	3.6	0.2	60	2	100	SMA(f)	-40~+70
TMPS3-06001800-S	6~18	SP3T	3.2	0.2	60	2	100	SMA(f)	-40~+70
TMPS4-00020300-S	0.02~3	SP4T	2.8	0.2	60	2	100	SMA(f)	-40~+70
TMPS4-00104000-S	0.1~40	SP4T	7.0	0.2	65	3	100	2.92mm(f)	-40~+85
TMPS4-00200600-R	0.2~6	SP4T	3.0	0.2	75	-	100	SMA(f)	-40~+85
TMPS4-00200600-S	0.2~6	SP4T	3.5	0.2	75	-	100	SMA(f)	-40~+85
TMPS4-00205000-R	0.2~50	SP4T	11.0	0.2	60	-	100	2.4mm(f)	-40~+85
TMPS4-00205000-S	0.2~50	SP4T	11.0	0.2	60	-	100	2.4mm(f)	-40~+85
TMPS4-00400600-2S	0.4~6	SP4T	2.5	2	80	1.5	200	SMA(f)	-55~+85
TMPS4-00400600-2SA	0.4~6	SP4T	3.0	2	120	1.6	200	SMA(f)	-55~+85
TMPS4-00400800-2S	0.4~8	SP4T	3.0	2	80	1.5	200	SMA(f)	-55~+85
TMPS4-01001800-S	1~18	SP4T	3.2	1	70	2	100	SMA(f)	-55~+85
TMPS4-01600600-S	1.6~6	SP4T	1.5	0.2	60	1.6	100	SMA(f)	-40~+85
TMPS4-02000600-S	2~6	SP4T	2.0	0.2	60	1.8	100	SMA(f)	-40~+70
TMPS4-02001800-S	2~18	SP4T	3.6	0.2	60	2	100	SMA(f)	-40~+70
TMPS4-06001200-R	6~12	SP4T	4.0	0.2	75	-	100	SMA(f)	-40~+85
TMPS4-06001200-S	6~12	SP4T	4.5	0.2	75	-	100	SMA(f)	-40~+85
TMPS4-06001800-S	6~18	SP4T	3.2	0.2	60	2	100	SMA(f)	-40~+70
TMPS4-06005000-R	6~50	SP4T	9.0	0.2	55	-	100	2.4mm(f)	-40~+85
TMPS4-06005000-S	6~50	SP4T	10.0	0.2	60	-	100	2.4mm(f)	-40~+85
TMPS4-12001800-R	12~18	SP4T	4.5	0.2	70	-	100	SMA(f)	-40~+85
TMPS4-12001800-S	12~18	SP4T	5.0	0.2	70	-	100	SMA(f)	-40~+85
TMPS4-18002650-R	18~26.5	SP4T	5.5	0.2	70	-	100	SMA(f)	-40~+85
TMPS4-18002650-S	18~26.5	SP4T	6.0	0.2	70	-	100	SMA(f)	-40~+85
TMPS4-26504000-R	26.5~40	SP4T	8.0	0.2	60	-	100	2.92mm(f)	-40~+85
TMPS4-26504000-S	26.5~40	SP4T	9.0	0.2	60	-	100	2.92mm(f)	-40~+85
TMPS6-00020300-S	0.02~3	SP6T	3.2	0.2	60	2	100	SMA(f)	-40~+70
TMPS6-00400800-2S	0.4~8	SP6T	3.5	2.0	80	1.5	200	SMA(f)	-55~+85
TMPS6-01600600-S	1.6~6	SP6T	1.6	0.2	60	1.5	100	SMA(f)	-40~+85
TMPS6-02000600-S	2~6	SP6T	2.5	0.2	60	1.8	100	SMA(f)	-40~+70
TMPS6-02001800-S	2~18	SP6T	3.8	0.2	60	2	100	SMA(f)	-40~+70
TMPS6-06001800-S	6~18	SP6T	3.2	0.2	60	2	100	SMA(f)	-40~+70
TMPS8-00020300-S	0.02~3	SP8T	3.5	0.2	60	2	100	SMA(f)	-40~+70
TMPS8-00354000-S	0.35~40	SP8T	8.5	23dBm	65	3	200	2.92mm(f)	-40~+70
TMPS8-00400600-2S	0.4~6	SP8T	3.0	2.0	80	1.6	200	SMA(f)	-55~+85
TMPS8-00400600-2SA	0.4~6	SP8T	3.5	2.0	120	1.6	200	SMA(f)	-55~+85
TMPS8-00400800-2S	0.4~8	SP8T	3.5	2.0	80	1.6	200	SMA(f)	-55~+85
TMPS8-00400850-2S	0.4~8.5	SP8T	5.0	2.0	110	1.6	200	SMA(f)	-55~+85
TMPS8-00401300-1S	0.4~13	SP8T	5.0	1.0	110	1.6	300	SMA(f)	-40~+70
TMPS8-00401800-AS	0.4~18	SP8T	5.5	24dBm	80	2.0	150	SMA(f)	-40~+70
TMPS8-00504000-S	0.5~40	SP8T	8.5	23dBm	45	2.8	-	2.92mm(f)	-45~+85
TMPS8-00660131-100S-R	0.668~1.31	SP8T	1.0	100	35	1.5	1.8us	SMA(f)	-
TMPS8-00800270-2S	0.8~2.7	SP8T	1.6	2.0	70	1.5	200	SMA(f)	-55~+85
TMPS8-01600600-S	1.6~6	SP8T	2.0	0.2	60	1.8	100	SMA(f)	-40~+85
TMPS8-02000600-S	2~6	SP8T	2.8	0.2	60	1.8	100	SMA(f)	-40~+70
TMPS8-02001800-S	2~18	SP8T	4.1	0.2	60	2	100	SMA(f)	-40~+70
TMPS8-06001800-S	6~18	SP8T	4.1	0.2	60	2	100	SMA(f)	-40~+70
TMPS8-07700860-10S	7.7~8.6	SP8T	1.5	10	25	1.5	500	SMA(f)	-55~+85
TMPS9-00400600-S	0.4~6	SP9T	3.5	2.0	80	1.6	200	SMA(f)	-55~+85
TMPS10-00400800-1S	0.4~8	SP10T	4.0	1.0	80	1.6	200	SMA(f)	-55~+85
TMPS12-00400800-S	0.4~8	SP12T	5.0	2.0	80	1.6	200	SMA(f)	-55~+85
TMPS12-00400600-2S	0.4~6	SP12T	3.0	2.0	80	1.6	200	SMA(f)	-40~+70
TMPS12-00400800-2S	0.4~8	SP12T	4.0	2.0	80	1.6	200	SMA(f)	-40~+70
TMPS12-00401200-2S	0.4~12	SP12T	5.0	2.0	80	1.6	200	SMA(f)	-40~+70
TMPS16-00400600-2S	0.4~6	SP16T	4.0	2.0	80	1.6	200	SMA(f)	-40~+70
TMPS16-00400800-2S	0.4~8	SP16T	5.0	2.0	80	1.6	200	SMA(f)	-40~+70
TMPS16-00401800-2A	0.4~18	SP16T	7.5	24dBm	80	2.0	150	SMA(f)	-40~+70
TMPS24-00400600-2S	0.4~6	SP24T	4.0	2.0	80	1.6	200	SMA(f)	-40~+70
TMPS24-00400800-2S	0.4~8	SP24T	7.0	2.0	80	1.6	200	SMA(f)	-40~+70
TMPS24-00401800-1S	0.4~18	SP24T	8.0	1.0	80	2.0	200	SMA(f)	-40~+70
TMPS22-00400600-2S	0.4~6	DPDT	2.0	2.0	70	1.5	200	SMA(f)	-55~+85
TMPS22-00400750-2S	0.4~7.5	DPDT	2.5	2.0	70	1.5	200	SMA(f)	-55~+85
