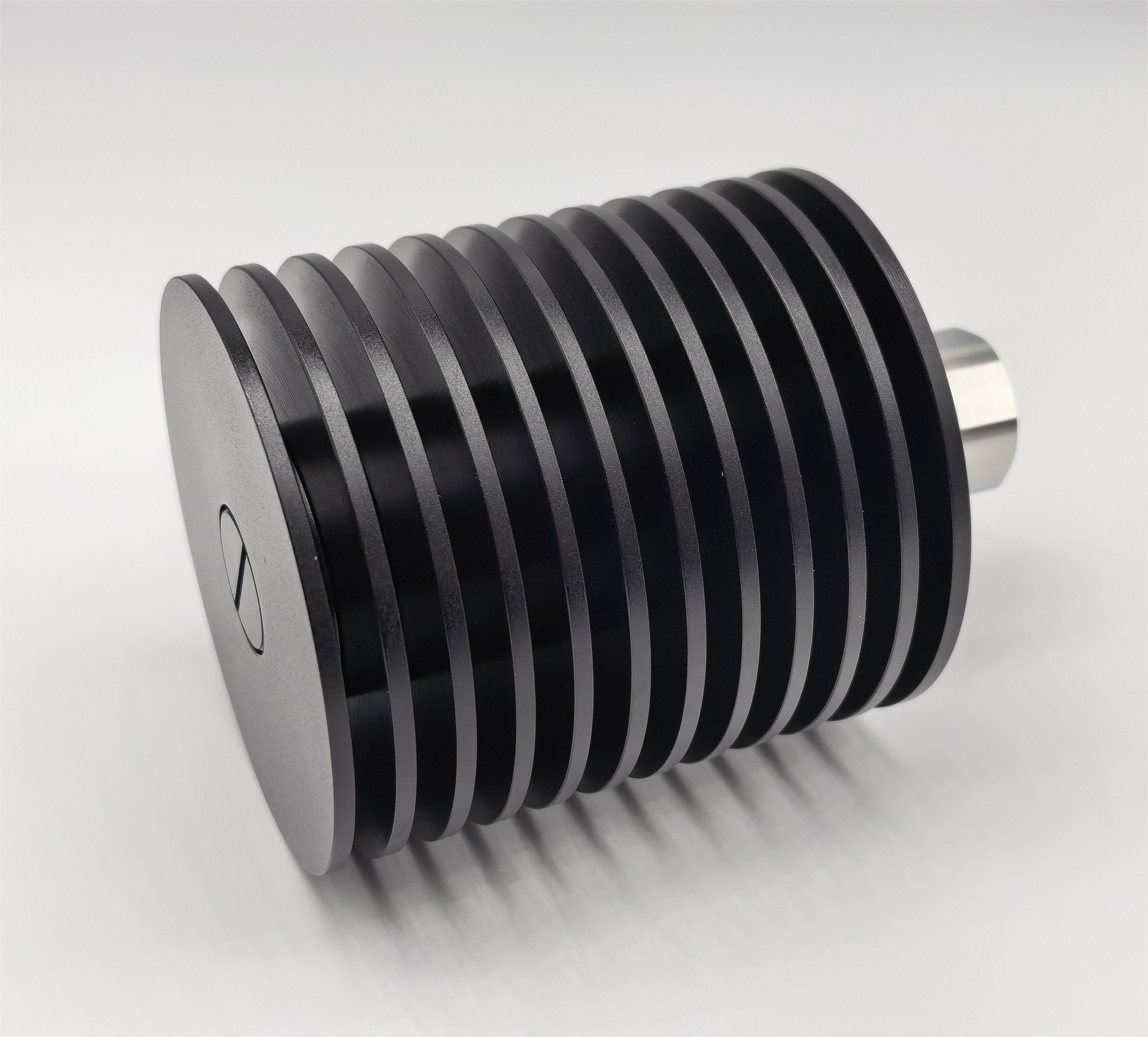

Coaxial Terminations
50 Ohms ✧ Low Insertion Loss ✧ Low VSWR ✧ High Reliability ✧ Long Wear ✧ Excellent Repeatability ✧ Cost Effective ✧ Rugged Construction
Military, Space and Commercial Applications
Model Number | Frequency Range (GHz) | VSWR | Power | Connectors |
TMT1101M | DC~110 | 1.35, 1.45 | 1W @25℃ | 1.0mm Male |
TMT1101F | DC~110 | 1.35, 1.45 | 1W @25℃ | 1.0mm Female |
TMT61SM-GBA | DC~6 | 1.15 max | 1W @25℃ | SMA male |
TMT181SF | DC~18 | 1.15 max | 1W @25℃ | SMA female |
TMT181SM | DC~18 | 1.15 max | 1W @25℃ | SMA male |
TMT181SM-2 | DC~18 | 1.2 max | 1W @25℃ | SMA male |
TMT181SF-2 | DC~18 | 1.2 max | 1W @25℃ | SMA female |
TMT331F | DC~33 | 1.25 max | 1W @25℃ | 3.5mm female |
TMT331M | DC~33 | 1.25 max | 1W @25℃ | 3.5mm male |
TMT42NM | DC~4 | 1.15 max | 2W @25℃ | N male |
TMT62NM | DC~6 | 1.2 max | 2W @25℃ | N male |
TMT82NM | DC~8.5 | 1.25 max | 2W @25℃ | N male |
TMT122NM | DC~12.4 | 1.25 max | 2W @25℃ | N male |
TMT182NM | DC~18 | 1.3 max | 2W @25℃ | N male |
TMT182NMA | DC~18 | 1.15 max | 2W @25℃ | N male |
TMT42NF | DC~4 | 1.15 max | 2W @25℃ | N female |
TMT62NF | DC~6 | 1.2 max | 2W @25℃ | N female |
TMT82NF | DC~8.5 | 1.2 max | 2W @25℃ | N female |
TMT122NF | DC~12.4 | 1.25 max | 2W @25℃ | N female |
TMT182NF | DC~18 | 1.3 max | 2W @25℃ | N female |
TMT182NFA | DC~18 | 1.15 max | 2W @25℃ | N female |
TMT42SM | DC~4 | 1.15 max | 2W @25℃ | SMA male |
TMT62SM | DC~6 | 1.2 max | 2W @25℃ | SMA male |
TMT82SM | DC~8.5 | 1.2 max | 2W @25℃ | SMA male |
TMT122SM | DC~12.4 | 1.25 max | 2W @25℃ | SMA male |
TMT182SM | DC~18 | 1.3 max | 2W @25℃ | SMA male |
TMT262SM | DC~26.5 | 1.2 max | 2W @25℃ | SMA male |
TMT42SF | DC~4 | 1.15 max | 2W @25℃ | SMA female |
TMT62SF | DC~6 | 1.2 max | 2W @25℃ | SMA female |
TMT82SF | DC~8.5 | 1.2 max | 2W @25℃ | SMA female |
TMT122SF | DC~12.4 | 1.25 max | 2W @25℃ | SMA female |
TMT182SF | DC~18 | 1.3 max | 2W @25℃ | SMA female |
TMT182TM | DC~18 | 1.25 max | 2W @25℃ | TNC male |
TMT42BM | DC~4 | 1.15 max | 2W @25℃ | BNC male |
TMT82BM | DC~8 | 1.2 max | 2W @25℃ | BNC male |
TMT42BF | DC~4 | 1.15 max | 2W @25℃ | BNC female |
TMT82BF | DC~8 | 1.2 max | 2W @25℃ | BNC female |
TMT42PF | DC~4 | 1.2 max | 2W @25℃ | 4.3-10 female |
TMT82PF | DC~8 | 1.25 max | 2W @25℃ | 4.3-10 female |
TMT42PM | DC~4 | 1.2 max | 2W @25℃ | 4.3-10 male |
TMT82PM | DC~8 | 1.25 max | 2W @25℃ | 4.3-10 male |
TMT42QM | DC~4 | 1.15 max | 2W @25℃ | QMA male |
TMT62QM | DC~6 | 1.2 max | 2W @25℃ | QMA male |
TMT62QNM | DC~6 | 1.2 max | 2W @25℃ | QN male |
TMT272F | DC~27 | 1.2 max | 2W @25℃ | 3.5mm female |
TMT272M | DC~27 | 1.2 max | 2W @25℃ | 3.5mm male |
TMT272SM | DC~27 | 1.2 max | 2W @25℃ | SMA male |
TMT402F | DC~40 | 1.23 max | 2W @25℃ | 2.92mm female |
TMT402M | DC~40 | 1.23 max | 2W @25℃ | 2.92mm male |
TMT65QNM | DC~6 | 1.2 max | 5W @25℃ | QN male |
TMT45NM | DC~4 | 1.15 max | 5W @25℃ | N male |
TMT65NM | DC~6 | 1.2 max | 5W @25℃ | N male |
TMT85NM | DC~8.5 | 1.25 max | 5W @25℃ | N male |
TMT125NM | DC~12.4 | 1.25 max | 5W @25℃ | N male |
TMT185NM | DC~18 | 1.3 max | 5W @25℃ | N male |
TMT45NF | DC~4 | 1.15 max | 5W @25℃ | N female |
TMT65NF | DC~6 | 1.2 max | 5W @25℃ | N female |
TMT85NF | DC~8.5 | 1.25 max | 5W @25℃ | N female |
TMT125NF | DC~12.4 | 1.25 max | 5W @25℃ | N female |
TMT185NF | DC~18 | 1.3 max | 5W @25℃ | N female |
TMT45SM | DC~4 | 1.15 max | 5W @25℃ | SMA male |
TMT65SM | DC~6 | 1.2 max | 5W @25℃ | SMA male |
TMT85SM | DC~8.5 | 1.2 max | 5W @25℃ | SMA male |
TMT125SM | DC~12.4 | 1.25 max | 5W @25℃ | SMA male |
TMT185SM | DC~18 | 1.3 max | 5W @25℃ | SMA male |
TMT45SF | DC~4 | 1.15 max | 5W @25℃ | SMA female |
TMT65SF | DC~6 | 1.2 max | 5W @25℃ | SMA female |
TMT85SF | DC~8.5 | 1.2 max | 5W @25℃ | SMA female |
TMT125SF | DC~12.4 | 1.25 max | 5W @25℃ | SMA female |
TMT185SF | DC~18 | 1.3 max | 5W @25℃ | SMA female |
TMT410SM | DC~4 | 1.15 max | 10W @25℃ | SMA male |
TMT610SM | DC~6 | 1.2 max | 10W @25℃ | SMA male |
TMT810SM | DC~8.5 | 1.25 max | 10W @25℃ | SMA male |
TMT1210SM | DC~12.4 | 1.25 max | 10W @25℃ | SMA male |
TMT1810SM | DC~18 | 1.3 max | 10W @25℃ | SMA male |
TMT410SF | DC~4 | 1.15 max | 10W @25℃ | SMA female |
TMT610SF | DC~6 | 1.2 max | 10W @25℃ | SMA female |
TMT810SF | DC~8.5 | 1.2 max | 10W @25℃ | SMA female |
TMT1210SF | DC~12.4 | 1.25 max | 10W @25℃ | SMA female |
TMT1810SF | DC~18 | 1.3 max | 10W @25℃ | SMA female |
TMT410NM | DC~4 | 1.15 max | 10W @25℃ | N male |
TMT610NM | DC~6 | 1.2 max | 10W @25℃ | N male |
TMT810NM | DC~8.5 | 1.25 max | 10W @25℃ | N male |
TMT1210NM | DC~12.4 | 1.25 max | 10W @25℃ | N male |
TMT1810NM | DC~18 | 1.3 max | 10W @25℃ | N male |
TMT410NF | DC~4 | 1.15 max | 10W @25℃ | N female |
TMT610NF | DC~6 | 1.2 max | 10W @25℃ | N female |
TMT810NF | DC~8.5 | 1.25 max | 10W @25℃ | N female |
TMT1210NF | DC~12.4 | 1.25 max | 10W @25℃ | N female |
TMT1810NF | DC~18 | 1.3 max | 10W @25℃ | N female |
TMT415NM | DC~4 | 1.2 max | 15W @25℃ | N male |
TMT615NM | DC~6 | 1.25 max | 15W @25℃ | N male |
TMT815NM | DC~8.5 | 1.25 max | 15W @25℃ | N male |
TMT1215NM | DC~12.4 | 1.3 max | 15W @25℃ | N male |
TMT1815NM | DC~18 | 1.4 max | 15W @25℃ | N male |
TMT415NF | DC~4 | 1.2 max | 15W @25℃ | N female |
TMT615NF | DC~6 | 1.25 max | 15W @25℃ | N female |
TMT815NF | DC~8.5 | 1.25 max | 15W @25℃ | N female |
TMT1215NF | DC~12.4 | 1.3 max | 15W @25℃ | N female |
TMT1815NF | DC~18 | 1.4 max | 15W @25℃ | N female |
TMT415SM | DC~4 | 1.2 max | 15W @25℃ | SMA male |
TMT615SM | DC~6 | 1.25 max | 15W @25℃ | SMA male |
TMT815SM | DC~8.5 | 1.25 max | 15W @25℃ | SMA male |
TMT1215SM | DC~12.4 | 1.3 max | 15W @25℃ | SMA male |
TMT1815SM | DC~18 | 1.4 max | 15W @25℃ | SMA male |
TMT415SF | DC~4 | 1.2 max | 15W @25℃ | SMA female |
TMT615SF | DC~6 | 1.25 max | 15W @25℃ | SMA female |
TMT815SF | DC~8.5 | 1.25 max | 15W @25℃ | SMA female |
TMT1215SF | DC~12.4 | 1.3 max | 15W @25℃ | SMA female |
TMT1815SF | DC~18 | 1.4 max | 15W @25℃ | SMA female |
TMT420NM | DC~4 | 1.2 max | 20W @25℃ | N male |
TMT620NM | DC~6 | 1.25 max | 20W @25℃ | N male |
TMT820NM | DC~8.5 | 1.25 max | 20W @25℃ | N male |
TMT1220NM | DC~12.4 | 1.35 max | 20W @25℃ | N male |
TMT1820NM | DC~18 | 1.4 max | 20W @25℃ | N male |
TMT420SM | DC~4 | 1.2 max | 20W @25℃ | SMA male |
TMT620SM | DC~6 | 1.25 max | 20W @25℃ | SMA male |
TMT820SM | DC~8.5 | 1.25 max | 20W @25℃ | SMA male |
TMT1220SM | DC~12.4 | 1.3 max | 20W @25℃ | SMA male |
TMT1820SM | DC~18 | 1.4 max | 20W @25℃ | SMA male |
TMT420SF | DC~4 | 1.2 max | 20W @25℃ | SMA female |
TMT620SF | DC~6 | 1.25 max | 20W @25℃ | SMA female |
TMT820SF | DC~8.5 | 1.25 max | 20W @25℃ | SMA female |
TMT1220SF | DC~12.4 | 1.3 max | 20W @25℃ | SMA female |
TMT1820SF | DC~18 | 1.4 max | 20W @25℃ | SMA female |
TMT420TM | DC~4 | 1.2 max | 20W @25℃ | TNC male |
TMT620TM | DC~6 | 1.25 max | 20W @25℃ | TNC male |
TMT820TM | DC~8.5 | 1.25 max | 20W @25℃ | TNC male |
TMT1220TM | DC~12.4 | 1.3 max | 20W @25℃ | TNC male |
TMT1820TM | DC~18 | 1.4 max | 20W @25℃ | TNC male |
TMT420TF | DC~4 | 1.2 max | 20W @25℃ | TNC female |
TMT620TF | DC~6 | 1.25 max | 20W @25℃ | TNC female |
TMT820TF | DC~8.5 | 1.25 max | 20W @25℃ | TNC female |
TMT1220TF | DC~12.4 | 1.3 max | 20W @25℃ | TNC female |
TMT1820TF | DC~18 | 1.4 max | 20W @25℃ | TNC female |
TMT425NF | DC~4 | 1.2 max | 25W @25℃ | N female |
TMT625NF | DC~6 | 1.25 max | 25W @25℃ | N female |
TMT825NF | DC~8.5 | 1.25 max | 25W @25℃ | N female |
TMT1225NF | DC~12.4 | 1.35 max | 25W @25℃ | N female |
TMT1825NF | DC~18 | 1.4 max | 25W @25℃ | N female |
TMT425NM | DC~4 | 1.2 max | 25W @25℃ | N male |
TMT625NM | DC~6 | 1.25 max | 25W @25℃ | N male |
TMT825NM | DC~8.5 | 1.25 max | 25W @25℃ | N male |
TMT1225NM | DC~12.4 | 1.35 max | 25W @25℃ | N male |
TMT1825NM | DC~18 | 1.4 max | 25W @25℃ | N male |
TMT425SM | DC~4 | 1.15 max | 25W @25℃ | SMA male |
TMT625SM | DC~6 | 1.2 max | 25W @25℃ | SMA male |
TMT825SM | DC~8.5 | 1.2 max | 25W @25℃ | SMA male |
TMT1225SM | DC~12.4 | 1.25 max | 25W @25℃ | SMA male |
TMT1825SM | DC~18 | 1.3 max | 25W @25℃ | SMA male |
TMT425SF | DC~4 | 1.15 max | 25W @25℃ | SMA female |
TMT625SF | DC~6 | 1.2 max | 25W @25℃ | SMA female |
TMT825SF | DC~8.5 | 1.2 max | 25W @25℃ | SMA female |
TMT1225SF | DC~12.4 | 1.25 max | 25W @25℃ | SMA female |
TMT1825SF | DC~18 | 1.3 max | 25W @25℃ | SMA female |
TMT425DM | DC~4 | 1.2 max | 25W @25℃ | DIN 7/16 male |
TMT625DM | DC~6 | 1.25 max | 25W @25℃ | DIN 7/16 male |
TMT425DF | DC~4 | 1.2 max | 25W @25℃ | DIN 7/16 female |
TMT625DF | DC~6 | 1.25 max | 25W @25℃ | DIN 7/16 female |
TMT425BM | DC~4 | 1.15 max | 25W @25℃ | BNC male |
TMT625BM | DC~6 | 1.2 max | 25W @25℃ | BNC male |
TMT425BF | DC~4 | 1.15 max | 25W @25℃ | BNC female |
TMT625BF | DC~6 | 1.2 max | 25W @25℃ | BNC female |
TMT425PM | DC~4 | 1.2 max | 25W @25℃ | 4.3-10 male |
TMT625PM | DC~6 | 1.25 max | 25W @25℃ | 4.3-10 male |
TMT425PF | DC~4 | 1.2 max | 25W @25℃ | 4.3-10 female |
TMT625PF | DC~6 | 1.25 max | 25W @25℃ | 4.3-10 female |
TMT430NM | DC~4 | 1.2 max | 30W @25℃ | N male |
TMT630NM | DC~6 | 1.25 max | 30W @25℃ | N male |
TMT830NM | DC~8.5 | 1.25 max | 30W @25℃ | N male |
TMT1230NM | DC~12.4 | 1.35 max | 30W @25℃ | N male |
TMT1830NM | DC~18 | 1.4 max | 30W @25℃ | N male |
TMT430NF | DC~4 | 1.2 max | 30W @25℃ | N female |
TMT630NF | DC~6 | 1.25 max | 30W @25℃ | N female |
TMT830NF | DC~8.5 | 1.25 max | 30W @25℃ | N female |
TMT1230NF | DC~12.4 | 1.3 max | 30W @25℃ | N female |
TMT1830NF | DC~18 | 1.4 max | 30W @25℃ | N female |
TMT435NM | DC~4 | 1.2 max | 35W @25℃ | N male |
TMT635NM | DC~6 | 1.25 max | 35W @25℃ | N male |
TMT835NM | DC~8.5 | 1.25 max | 35W @25℃ | N male |
TMT1235NM | DC~12.4 | 1.35 max | 35W @25℃ | N male |
TMT1835NM | DC~18 | 1.4 max | 35W @25℃ | N male |
TMT450NM | DC~4 | 1.2 max | 50W @25℃ | N male |
TMT650NM | DC~6 | 1.25 max | 50W @25℃ | N male |
TMT850NM | DC~8.5 | 1.25 max | 50W @25℃ | N male |
TMT1250NM | DC~12.4 | 1.35 max | 50W @25℃ | N male |
TMT1850NM | DC~18 | 1.4 max | 50W @25℃ | N male |
TMT450NF | DC~4 | 1.2 max | 50W @25℃ | N female |
TMT650NF | DC~6 | 1.25 max | 50W @25℃ | N female |
TMT850NF | DC~8.5 | 1.25 max | 50W @25℃ | N female |
TMT1250NF | DC~12.4 | 1.35 max | 50W @25℃ | N female |
TMT1850NF | DC~18 | 1.4 max | 50W @25℃ | N female |
TMT450NMA | DC~4 | 1.2 max | 50W @25℃ | N male |
TMT650NMA | DC~6 | 1.25 max | 50W @25℃ | N male |
TMT850NMA | DC~8 | 1.25 max | 50W @25℃ | N male |
TMT1250NMA | DC~12.4 | 1.3 max | 50W @25℃ | N male |
TMT1850NMA | DC~18 | 1.4 max | 50W @25℃ | N male |
TMT450NFA | DC~4 | 1.2 max | 50W @25℃ | N female |
TMT650NFA | DC~6 | 1.25 max | 50W @25℃ | N female |
TMT850NFA | DC~8.5 | 1.25 max | 50W @25℃ | N female |
TMT1250NFA | DC~12.4 | 1.35 max | 50W @25℃ | N female |
TMT1850NFA | DC~18 | 1.4 max | 50W @25℃ | N female |
TMT450SM | DC~4 | 1.2 max | 50W @25℃ | SMA male |
TMT650SM | DC~6 | 1.25 max | 50W @25℃ | SMA male |
TMT850SM | DC~8.5 | 1.25 max | 50W @25℃ | SMA male |
TMT1250SM | DC~12.4 | 1.35 max | 50W @25℃ | SMA male |
TMT1850SM | DC~18 | 1.4 max | 50W @25℃ | SMA male |
TMT450SF | DC~4 | 1.2 max | 50W @25℃ | SMA female |
TMT650SF | DC~6 | 1.25 max | 50W @25℃ | SMA female |
TMT850SF | DC~8.5 | 1.25 max | 50W @25℃ | SMA female |
TMT1250SF | DC~12.4 | 1.35 max | 50W @25℃ | SMA female |
TMT1850SF | DC~18 | 1.4 max | 50W @25℃ | SMA female |
TMT450SMA | DC~4 | 1.2 max | 50W @25℃ | SMA male |
TMT650SMA | DC~6 | 1.25 max | 50W @25℃ | SMA male |
TMT850SMA | DC~8.5 | 1.25 max | 50W @25℃ | SMA male |
TMT1250SMA | DC~12.4 | 1.35 max | 50W @25℃ | SMA male |
TMT1850SMA | DC~18 | 1.4 max | 50W @25℃ | SMA male |
TMT450SFA | DC~4 | 1.2 max | 50W @25℃ | SMA female |
TMT650SFA | DC~6 | 1.25 max | 50W @25℃ | SMA female |
TMT850SFA | DC~8.5 | 1.25 max | 50W @25℃ | SMA female |
TMT1250SFA | DC~12.4 | 1.35 max | 50W @25℃ | SMA female |
TMT1850SFA | DC~18 | 1.4 max | 50W @25℃ | SMA female |
TMT450TM | DC~4 | 1.2 max | 50W @25℃ | TNC male |
TMT650TM | DC~6 | 1.25 max | 50W @25℃ | TNC male |
TMT850TM | DC~8.5 | 1.25 max | 50W @25℃ | TNC male |
TMT1250TM | DC~12.4 | 1.3 max | 50W @25℃ | TNC male |
TMT1850TM | DC~18 | 1.4 max | 50W @25℃ | TNC male |
TMT450TF | DC~4 | 1.2 max | 50W @25℃ | TNC female |
TMT650TF | DC~6 | 1.25 max | 50W @25℃ | TNC female |
TMT850TF | DC~8.5 | 1.25 max | 50W @25℃ | TNC female |
TMT1250TF | DC~12.4 | 1.3 max | 50W @25℃ | TNC female |
TMT1850TF | DC~18 | 1.4 max | 50W @25℃ | TNC female |
TMT450DM | DC~4 | 1.2 max | 50W @25℃ | DIN 7/16 male |
TMT650DM | DC~6 | 1.25 max | 50W @25℃ | DIN 7/16 male |
TMT450DF | DC~4 | 1.2 max | 50W @25℃ | DIN 7/16 female |
TMT650DF | DC~6 | 1.25 max | 50W @25℃ | DIN 7/16 female |
TMT450PM | DC~4 | 1.2 max | 50W @25℃ | 4.3-10 male |
TMT650PM | DC~6 | 1.25 max | 50W @25℃ | 4.3-10 male |
TMT450PF | DC~4 | 1.2 max | 50W @25℃ | 4.3-10 female |
TMT650PF | DC~6 | 1.25 max | 50W @25℃ | 4.3-10 female |
TMT4100DM | DC~4 | 1.2 max | 100W @25℃ | DIN 7/16 male |
TMT6100DM | DC~6 | 1.25 max | 100W @25℃ | DIN 7/16 male |
TMT4100DF | DC~4 | 1.2 max | 100W @25℃ | DIN 7/16 female |
TMT6100DF | DC~6 | 1.25 max | 100W @25℃ | DIN 7/16 female |
TMT4100PM | DC~4 | 1.2 max | 100W @25℃ | 4.3-10 male |
TMT6100PM | DC~6 | 1.25 max | 100W @25℃ | 4.3-10 male |
TMT4100PF | DC~4 | 1.2 max | 100W @25℃ | 4.3-10 female |
TMT6100PF | DC~6 | 1.25 max | 100W @25℃ | 4.3-10 female |
TMT4100NM | DC~4 | 1.15 max | 100W @25℃ | N male |
TMT6100NM | DC~6 | 1.2 max | 100W @25℃ | N male |
TMT8100NM | DC~8.5 | 1.2 max | 100W @25℃ | N male |
TMT12100NM | DC~12.4 | 1.25 max | 100W @25℃ | N male |
TMT18100NM | DC~18 | 1.35 max | 100W @25℃ | N male |
TMT4100NF | DC~4 | 1.15 max | 100W @25℃ | N female |
TMT6100NF | DC~6 | 1.2 max | 100W @25℃ | N female |
TMT8100NF | DC~8.5 | 1.2 max | 100W @25℃ | N female |
TMT12100NF | DC~12.4 | 1.25 max | 100W @25℃ | N female |
TMT18100NF | DC~18 | 1.35 max | 100W @25℃ | N female |
TMT4100NMA | DC~4 | 1.15 max | 100W @25℃ | N male |
TMT6100NMA | DC~6 | 1.2 max | 100W @25℃ | N male |
TMT8100NMA | DC~8.5 | 1.2 max | 100W @25℃ | N male |
TMT12100NMA | DC~12.4 | 1.25 max | 100W @25℃ | N male |
TMT18100NMA | DC~18 | 1.35 max | 100W @25℃ | N male |
TMT4100NFA | DC~4 | 1.15 max | 100W @25℃ | N female |
TMT6100NFA | DC~6 | 1.2 max | 100W @25℃ | N female |
TMT8100NFA | DC~8.5 | 1.2 max | 100W @25℃ | N female |
TMT12100NFA | DC~12.4 | 1.25 max | 100W @25℃ | N female |
TMT18100NFA | DC~18 | 1.35 max | 100W @25℃ | N female |
TMT4100SM | DC~4 | 1.15 max | 100W @25℃ | SMA male |
TMT6100SM | DC~6 | 1.2 max | 100W @25℃ | SMA male |
TMT8100SM | DC~8.5 | 1.2 max | 100W @25℃ | SMA male |
TMT12100SM | DC~12.4 | 1.25 max | 100W @25℃ | SMA male |
TMT18100SM | DC~18 | 1.35 max | 100W @25℃ | SMA male |
TMT4100SMA | DC~4 | 1.15 max | 100W @25℃ | SMA male |
TMT6100SMA | DC~6 | 1.2 max | 100W @25℃ | SMA male |
TMT8100SMA | DC~8.5 | 1.2 max | 100W @25℃ | SMA male |
TMT12100SMA | DC~12.4 | 1.25 max | 100W @25℃ | SMA male |
TMT18100SMA | DC~18 | 1.35 max | 100W @25℃ | SMA male |
TMT4150NMA | DC~4 | 1.2 max | 150W @25℃ | N male |
TMT6150NMA | DC~6 | 1.25 max | 150W @25℃ | N male |
TMT8150NMA | DC~8.5 | 1.25 max | 150W @25℃ | N male |
TMT12150NMA | DC~12.4 | 1.35 max | 150W @25℃ | N male |
TMT18150NMA | DC~18 | 1.45 max | 150W @25℃ | N male |
TMT4150NFA | DC~4 | 1.2 max | 150W @25℃ | N female |
TMT6150NFA | DC~6 | 1.25 max | 150W @25℃ | N female |
TMT8150NFA | DC~8.5 | 1.25 max | 150W @25℃ | N female |
TMT12150NFA | DC~12.4 | 1.35 max | 150W @25℃ | N female |
TMT18150NFA | DC~18 | 1.45 max | 150W @25℃ | N female |
TMT4200NFA | DC~4 | 1.2 max | 200W @25℃ | N female |
TMT6200NFA | DC~6 | 1.25 max | 200W @25℃ | N female |
TMT8200NFA | DC~8.5 | 1.25 max | 200W @25℃ | N female |
TMT12200NFA | DC~12.4 | 1.35 max | 200W @25℃ | N female |
TMT18200NFA | DC~18 | 1.45 max | 200W @25℃ | N female |
TMT4200NMA | DC~4 | 1.2 max | 200W @25℃ | N male |
TMT6200NMA | DC~6 | 1.25 max | 200W @25℃ | N male |
TMT8200NMA | DC~8.5 | 1.25 max | 200W @25℃ | N male |
TMT12200NMA | DC~12.4 | 1.35 max | 200W @25℃ | N male |
TMT18200NMA | DC~18 | 1.45 max | 200W @25℃ | N male |
TMT4250NMA | DC~4 | 1.2 max | 250W @25℃ | N male |
TMT6250NMA | DC~6 | 1.25 max | 250W @25℃ | N male |
TMT8250NMA | DC~8.5 | 1.25 max | 250W @25℃ | N male |
TMT12250NMA | DC~12.4 | 1.35 max | 250W @25℃ | N male |
TMT18250NMA | DC~18 | 1.45 max | 250W @25℃ | N male |
TMT4250NFA | DC~4 | 1.2 max | 250W @25℃ | N female |
TMT6250NFA | DC~6 | 1.25 max | 250W @25℃ | N female |
TMT8250NFA | DC~8.5 | 1.25 max | 250W @25℃ | N female |
TMT12250NFA | DC~12.4 | 1.35 max | 250W @25℃ | N female |
TMT18250NFA | DC~18 | 1.45 max | 250W @25℃ | N female |
TMT4300NMA | DC~4 | 1.2 max | 300W @25℃ | N male |
TMT6300NMA | DC~6 | 1.25 max | 300W @25℃ | N male |
TMT8300NMA | DC~8.5 | 1.25 max | 300W @25℃ | N male |
TMT12300NMA | DC~12.4 | 1.35 max | 300W @25℃ | N male |
TMT18300NMA | DC~18 | 1.45 max | 300W @25℃ | N male |
TMT4300NFA | DC~4 | 1.2 max | 300W @25℃ | N female |
TMT6300NFA | DC~6 | 1.25 max | 300W @25℃ | N female |
TMT8300NFA | DC~8.5 | 1.25 max | 300W @25℃ | N female |
TMT12300NFA | DC~12.4 | 1.35 max | 300W @25℃ | N female |
TMT18300NFA | DC~18 | 1.45 max | 300W @25℃ | N female |
TMT4500NMA | DC~4 | 1.2 max | 500W @25℃ | N male |
TMT6500NMA | DC~6 | 1.25 max | 500W @25℃ | N male |
TMT8500NMA | DC~8.5 | 1.25 max | 500W @25℃ | N male |
TMT12500NMA | DC~12.4 | 1.35 max | 500W @25℃ | N male |
TMT4500NFA | DC~4 | 1.2 max | 500W @25℃ | N female |
TMT6500NFA | DC~6 | 1.25 max | 500W @25℃ | N female |
TMT8500NFA | DC~8.5 | 1.25 max | 500W @25℃ | N female |
TMT12500NFA | DC~12.4 | 1.35 max | 500W @25℃ | N female |
TMT18500NFA | DC~18 | 1.45 max | 500W @25℃ | N female |
TMT31000NMA | DC~3 | 1.35 max | 1000W @25℃ | N male |
TMTX1000NM | DC~4 | 1.45 max | 1000W @25℃ | N male |
TMT31000NFA | DC~3 | 1.35 max | 1000W @25℃ | N female |
TMTX1000NF | DC~4 | 1.45 max | 1000W @25℃ | N female |
TMT31000DM | DC~3 | 1.35 max | 1000W @25℃ | DIN 7/16 male |
TMT405F | DC~40 | 1.26 max | 5W @25℃ | 2.92mm female |
TMT405M | DC~40 | 1.26 max | 5W @25℃ | 2.92mm male |
TMT4010F | DC~40 | 1.26 max | 10W @25℃ | 2.92mm female |
TMT4010M | DC~40 | 1.26 max | 10W @25℃ | 2.92mm male |
TMT4015F | DC~40 | 1.26 max | 15W @25℃ | 2.92mm female |
TMT4015M | DC~40 | 1.26 max | 15W @25℃ | 2.92mm male |
TMT4020F | DC~40 | 1.26 max | 20W @25℃ | 2.92mm female |
TMT4020M | DC~40 | 1.26 max | 20W @25℃ | 2.92mm male |
TMT4025F | DC~40 | 1.3 max | 25W @25℃ | 2.92mm female |
TMT4025M | DC~40 | 1.3 max | 25W @25℃ | 2.92mm male |
TMT4030F | DC~40 | 1.3 max | 30W @25℃ | 2.92mm female |
TMT4030M | DC~40 | 1.3 max | 30W @25℃ | 2.92mm male |
TMT4035F | DC~40 | 1.3 max | 35W @25℃ | 2.92mm female |
TMT4035M | DC~40 | 1.3 max | 35W @25℃ | 2.92mm male |
TMT4040F | DC~40 | 1.38 max | 40W @25℃ | 2.92mm female |
TMT4040M | DC~40 | 1.38 max | 40W @25℃ | 2.92mm male |
TMT4045F | DC~40 | 1.38 max | 45W @25℃ | 2.92mm female |
TMT4045M | DC~40 | 1.38 max | 45W @25℃ | 2.92mm male |
TMT4050F | DC~40 | 1.38 max | 50W @25℃ | 2.92mm female |
TMT4050M | DC~40 | 1.38 max | 50W @25℃ | 2.92mm male |
TMT30100F | DC~30 | 1.3 max | 100W @25℃ | 2.92mm female |
TMT30100M | DC~30 | 1.3 max | 100W @25℃ | 2.92mm male |
TMT502F | DC~50 | 1.26 max | 2W @25℃ | 2.4mm female |
TMT502M | DC~50 | 1.26 max | 2W @25℃ | 2.4mm male |
TMT505F | DC~50 | 1.3 max | 5W @25℃ | 2.4mm female |
TMT505M | DC~50 | 1.3 max | 5W @25℃ | 2.4mm male |
TMT508F | DC~50 | 1.3 max | 8W @25℃ | 2.4mm female |
TMT508M | DC~50 | 1.3 max | 8W @25℃ | 2.4mm male |
TMT5010F | DC~50 | 1.3 max | 10W @25℃ | 2.4mm female |
TMT5010M | DC~50 | 1.3 max | 10W @25℃ | 2.4mm male |
TMT5015F | DC~50 | 1.3 max | 15W @25℃ | 2.4mm female |
TMT5015M | DC~50 | 1.3 max | 15W @25℃ | 2.4mm male |
TMT5020F | DC~50 | 1.34 max | 20W @25℃ | 2.4mm female |
TMT5020M | DC~50 | 1.34 max | 20W @25℃ | 2.4mm male |
TMT5030F | DC~50 | 1.34 max | 30W @25℃ | 2.4mm female |
TMT5030M | DC~50 | 1.34 max | 30W @25℃ | 2.4mm male |
TMT5035F | DC~50 | 1.38 max | 35W @25℃ | 2.4mm female |
TMT5035M | DC~50 | 1.38 max | 35W @25℃ | 2.4mm male |
TMT672V | DC~67 | 1.3 max | 2W @25℃ | 1.85mm |
TMT675F | DC~67 | 1.45 max | 5W @25℃ | 1.85mm female |
TMT675M | DC~67 | 1.45 max | 5W @25℃ | 1.85mm male |
TMT6710F | DC~67 | 1.45 max | 10W @25℃ | 1.85mm female |
TMT6710M | DC~67 | 1.45 max | 10W @25℃ | 1.85mm male |
TMT6713F | DC~67 | 1.58 max | 13W @25℃ | 1.85mm female |
TMT6713M | DC~67 | 1.58 max | 13W @25℃ | 1.85mm male |
TMT6718X | DC~67 | 1.58 max | 18W @25℃ | 1.85mm male to female |
TMT6722X | DC~67 | 1.65 max | 22W @25℃ | 1.85mm male to female |
TMT402SAF | DC~40 | 1.25 max | 2W @25℃ | SSMA female |
TMT402SAM | DC~40 | 1.35 max | 2W @25℃ | SSMA male |
TMT402SPF | DC~40 | 1.35 max | 2W @25℃ | SMP female |
TMT402SPM | DC~40 | 1.3 max | 2W @25℃ | SMP male |
TMT402MPF | DC~40 | 1.5 max | 2W @25℃ | SSMP female |
TMT402MPM | DC~40 | 1.3 max | 2W @25℃ | SSMP male |
TMT61SM-GBA | DC~6 | 1.15 max | 1W @25℃ | SMA Male |
TMT61SF-GBA | DC~6 | 1.1 max | 1W @25℃ | SMA Female |
TMT181SM-2 | DC~18 | 1.2 max | 1W @25℃ | SMA Male |
TMT181SF-2 | DC~18 | 1.2 max | 1W @25℃ | SMA Female |
TMT62SM-GBA | DC~6 | 1.15 max | 2W @25℃ | SMA male |
TMT62SF-GBA | DC~6 | 1.1 max | 2W @25℃ | SMA female |
TMT182SM-2 | DC~18 | 1.2 max | 2W @25℃ | SMA male |
TMT182SF-2 | DC~18 | 1.2 max | 2W @25℃ | SMA female |
TMT182NM-NBA | DC~18 | 1.2 max | 2W @25℃ | N male |
TMT185NM-NBA | DC~18 | 1.25 max | 5W @25℃ | N male |
TMT1810NM-NBA | DC~18 | 1.25 max | 10W @25℃ | N male |
TMT185SM-NBA | DC~18 | 1.2 max | 5W @25℃ | SMA male |
TMT1810SM-NBA | DC~18 | 1.2 max | 10W @25℃ | SMA male |
TMT182SM-GBA | DC~18 | 1.25 max | 2W @25℃ | SMA male |
TMT182SF-GBA | DC~18 | 1.25 max | 2W @25℃ | SMA female |
