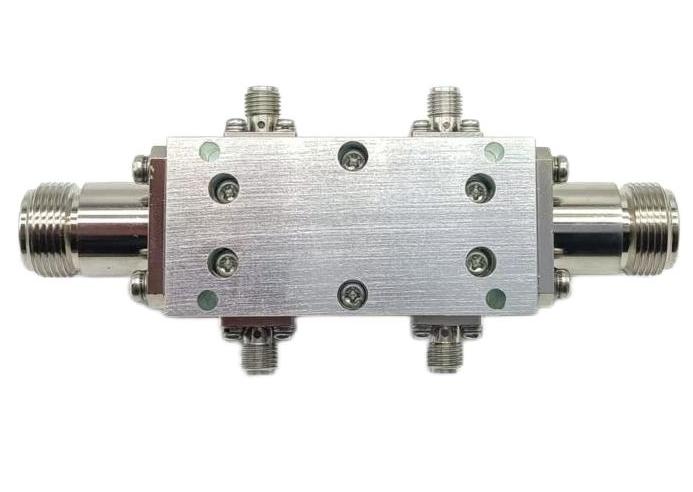

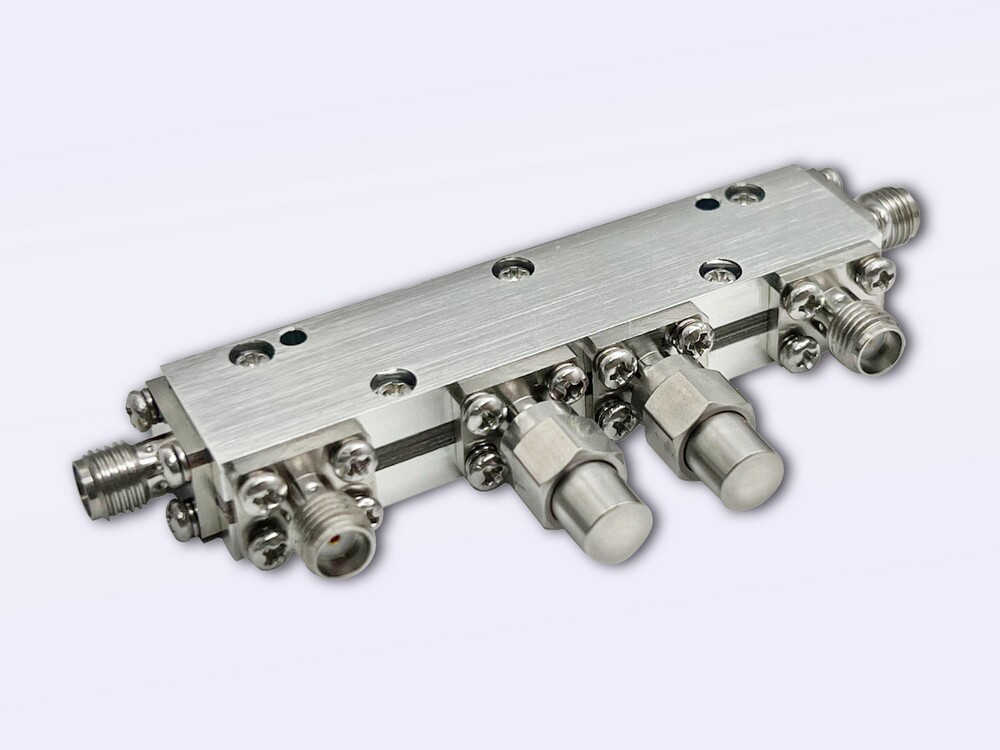

Dual Directional Couplers

Features：Wide frequency band operation ✧ High Directivity ✧ Low Insertion Loss ✧ Stable Performance over Temperature ✧ Customization Service is Available upon Requests ✧ Cost Effective

Applications：Commercial Wireless Communications ✧ SATCOM ✧ Radar ✧ Signal Monitoring and Measurement ✧ Antenna Beam Forming ✧ EMC Testing Environments ✧ Measurement of High-power Microwave Signals ✧ Power Monitoring of Traveling-wave tube Amplifiers ✧ Detection of High-power Microwave Output Power

Model Number	Frequency Range (GHz)	Coupling (dB)	VSWR (Max.)	Insertion Loss (dB, Max.)	Freqency Sensitivity (dB, Max.)	Directivity (dB, Min.)	Power (W)	Connector
TDDC-2K400M-50NS300	0.000002~0.4	50	1.3	0.35	-	18	300	N & SMA
TDDC-4K100M-40S200	0.000004~0.1	40	1.2	0.25	-	20	200	SMA
TDDC-4K400M-40S300	0.000004~0.4	40	1.5	0.4	-	20	300	SMA
TDDC-4K400M-40NS300	0.000004~0.4	40	1.5	0.4	-	20	300	N & SMA
TDDC-4K400M-50NS300	0.000004~0.4	50	1.3	0.4	-	18	300	N & SMA
TDDC-4K700M-40S250	0.000004~0.7	40	1.6	0.45	-	20	250	SMA
TDDC-9K10M-50DS3.5KW	0.000009~0.01	50	1.2	0.2	-	15	3500	DIN 7/16 & SMA
TDDC-9K100M-40NS200	0.000009~0.1	40	1.2	0.3	-	20	200	N & SMA
TDDC-9K100M-50NS500	0.000009~0.1	50	1.2	0.3	-	16	500	N & SMA
TDDC-9K100M-50N1KW	0.000009~0.1	50	1.35	0.25	-	20	1000	N
TDDC-9K100M-50NS2KW	0.000009~0.1	50	1.3	0.15	-	20	2000	N & SMA
TDDC-9K100M-50DS2KW	0.000009~0.1	50	1.3	0.25	-	18	2000	DIN 7/16 & SMA
TDDC-9K100M-60DS3.5KW	0.000009~0.1	60	1.2	0.2	-	18	3500	DIN 7/16 & SMA
TDDC-9K250M-50NS1KW	0.000009~0.25	50	1.3	0.25	-	14	1000	N & SMA
TDDC-9K250M-50N1KW	0.000009~0.25	50	1.2	0.2	-	20	1000	N
TDDC-9K260M-50N1KW	0.000009~0.26	50	1.35	0.25	-	20	1000	N
TDDC-9K260M-50DS3KW	0.000009~0.26	50	1.3	0.25	-	18	3000	DIN 7/16 & SMA
TDDC-9K260M-50DS4KW	0.000009~0.26	50	1.3	0.25	-	18	4000	DIN 7/16 & SMA
TDDC-9K400M-40NS200	0.000009~0.4	40	1.25	0.3	-	20	200	N & SMA
TDDC-9K400M-40NS300	0.000009~0.4	40	1.3	0.5	-	20	300	N & SMA
TDDC-9K500M-40NS200	0.000009~0.5	40	1.3	0.5	-	20	200	N & SMA
TDDC-10K100M-50NS500	0.00001~0.1	50	1.3	0.5	-	16	500	N & SMA
TDDC-10K250M-50DS3.5KW	0.00001~0.25	50	1.3	0.3	-	15	3500	DIN 7/16 & SMA
TDDC-10K400M-40N400	0.00001~0.4	40	1.3	0.5	-	20	400	N
TDDC-100K30M-60DS5KW	0.0001~0.03	60	1.2	0.1	-	20	5000	DIN 7/16 & SMA
TDDC-100K1G-40NS200	0.0001~1	40	1.3	0.6	-	18	200	N & SMA
TDDC-130K300M-40S200	0.00013~0.3	40	1.3	0.3	-	20	200	SMA
TDDC-400K30M-50NS3KW	0.0004~0.03	50	1.15	0.15	-	25	3000	N & SMA
TDDC-1M30M-60NS3KW	0.001~0.03	60	1.4	0.1	-	20	3000	N & SMA
TDDC-1M30M-66DS10KW	0.001~0.03	66	1.5	0.1	-	20	10000	DIN 7/16 & SMA
TDDC-1M100M-70DS5KW	0.001~0.1	70	1.1	0.1	-	20	5000	DIN 7/16 & SMA
TDDC-1M500M-40NS200	0.001~0.5	40	1.3	0.6	-	18	200	N & SMA
TDDC-1M500M-50NS1KW	0.001~0.5	50	1.3	0.2	-	20	1000	N & SMA
TDDC-1M530M-50NS1KW	0.001~0.53	50	1.3	0.3	-	15	1000	N & SMA
TDDC-1.5M30M-50NS1K8W	0.0015~0.03	50	1.2	0.15	-	20	1800	N & SMA
TDDC-1.6M30M-60NS2KW	0.0016~0.03	60	1.5	0.1	-	20	2000	N & SMA
TDDC-1.6M30M-60NS3KW	0.0016~0.03	60	1.5	0.1	-	20	3000	N & SMA
TDDC-2M30M-63DS10KW	0.002~0.03	63	1.3	0.1	-	22	10000	DIN 7/16 & SMA
TDDC-3M30M-60NS3KW	0.003~0.03	60	1.4	0.1	-	20	3000	N & SMA
TDDC-00010010-50DS3.5KW	0.01~0.1	50	1.2	0.2	-	18	3500	DIN 7/16 & SMA
TDDC-00010020-50DS3.5KW	0.01~0.2	50	1.15	0.2	-	20	3500	DIN 7/16 & SMA
TDDC-00010051-30NS300	0.01~0.512	30	1.3	1.0	-	18	300	N & SMA
TDDC-000130025-60NS5KW	0.013~0.25	60	1.1	0.05	-	20	5000	N & SMA
TDDC-00020010-50NS600	0.02~0.1	50	1.15	0.2	-	18	600	N & SMA
TDDC-00020010-50DS4KW	0.02~0.1	50	1.4	0.1	-	20	4000	DIN 7/16 & SMA
TDDC-00020020-55NS600	0.02~0.2	55	1.2	0.15	-	19	600	N & SMA
TDDC-00020020-55DS2.5KW	0.02~0.2	55	1.2	0.15	-	19	2500	DIN 7/16 & SMA
TDDC-00020050-50NS500	0.02~0.5	50	1.2	0.2	-	18	500	N & SMA
TDDC-00020052-50NS500	0.02~0.52	50	1.2	0.2	-	20	500	N & SMA
TDDC-00020100-50NS500	0.02~1	50	1.2	0.3	-	18	500	N & SMA
TDDC-30M512M-50DS2KW	0.03~0.512	50	1.2	0.2	-	20	2000	DIN 7/16 & SMA
TDDC-00030052-50NS500	0.03~0.52	50	1.2	0.2	-	20	500	N & SMA
TDDC-00050100-50NS800	0.05~1	50	1.3	0.3	-	20	800	N & SMA
TDDC-00080100-50NS1KW	0.08~1	50	1.2	0.3	-	20	1000	N & SMA
TDDC-00080100-50DS1.2KW	0.08~1	50	1.3	0.3	-	18	1200	DIN 7/16 & SMA
TDDC-080012-56LN10KW	0.0008~0.0012	54-58	1.2	0.05	-	18	10KW	LC & Type-N
TDDC-160024-50LN10KW	0.0016~0.0024	50-55	1.2	0.05	-	20	10KW	LC & Type-N
TDDC-01203-50LN10KW	0.012~0.03	50-58.2	1.2	0.05	-	20	10KW	LC & Type-N
TDDC-00020040-50DS4KW	0.02~0.4	50	1.2	0.1	-	20	4KW	DIN 7/16 & SMA
TDDC-00020100-50CS1KW	0.02~1	50	1.2	0.3	-	18	1KW	LC & SMA
TDDC-00030080-50NS500	0.03~0.8	50	1.2	0.25	-	18	500	N & SMA
TDDC-036066-50LN10KW	0.036~0.066	50-56	1.2	0.05	-	20	10KW	LC & Type-N
TDDC-00080052-50DS2KW	0.08~0.52	50	1.3	0.3	-	18	2000	DIN 7/16 & SMA
TDDC-00080100-45S100	0.08~1	45	1.3	0.5	-	18	100	SMA
TDDC-00080100-50NS600	0.08~1	50	1.2	0.3	-	20	600	N & SMA
TDDC-00080100-50NS600A	0.08~1	50	1.3	0.3	-	20	600	N & SMA
TDDC-00080100-50DNS800	0.08~1	50	1.3	0.3	-	18	800	DIN 7/16 & N & SMA
TDDC-00080100-50NS1KW	0.08~1	50	1.3	0.3	-	20	1000	N & SMA
TDDC-00080100-50N1KW	0.08~1	50	1.3	0.25	-	20	1000	N
TDDC-00080100-50DN2KW	0.08~1	50	1.3	0.3	-	18	2000	DIN 7/16 & N
TDDC-00080100-50DS2KW	0.08~1	50	1.3	0.3	-	18	2000	DIN 7/16 & SMA
TDDC-00100040-50DS2500	0.1~0.4	50	1.15	0.2	-	20	2500	DIN 7/16 & SMA
TDDC-00100052-50NS600	0.1~0.52	50	1.2	0.3	-	20	600	N & SMA
TDDC-00100052-50NS600A	0.1~0.52	50	1.6	0.2	-	20	600	N & SMA
TDDC-00180022-40NS2KWP	0.18~0.22	40	1.5	0.2	-	20	2000(PW)	N & SMA
TDDC-00200070-30S200	0.2~0.7	30	1.2	0.3	-	20	200	SMA
TDDC-00220100-40N400	0.225~1	40	1.4	0.5	-	13	400	N
TDDC-00300050-60LN10KW	0.3~0.5	60	1.1	0.2	-	22	10000	L52 & N
TDDC-00300070-50NS500	0.3~0.7	50	1.3	0.3	-	20	500	SMA & N
TDDC-00300100-40N100	0.3~1	40	1.3	0.9	±1.5	10	100	N
TDDC-00300200-34S30	0.3~2	34	1.3	0.3	-	20	30	SMA
TDDC-00300200-55S30	0.3~2	55	1.5	0.35	-	18	30	SMA
TDDC-00300200-40S100	0.3~2	40	1.35	0.3	-	18	100	SMA
TDDC-00300380-45NS100	0.3~3.8	45	1.4	0.3	-	15	100	N & SMA
TDDC-00300400-40S10	0.3~4	40	2.0	0.5	-	20	10	SMA
TDDC-00300600-20S50	0.3~6	20	1.3	1.4	±1.4	12	50	SMA
TDDC-00300600-20N30	0.3~6	20	1.4	1.4	±1.5	10	30	N
TDDC-00350070-50DS8KW	0.35~0.7	50	1.3	0.3	-	18	8000 Pulse Power	DIN 7/16(L29) & SMA
TDDC-00350200-40S30	0.35~2	40	1.5	0.35	-	20	30	SMA
TDDC-00350270-30NS200	0.35~2.7	30	1.4	0.5	±1.0	18	200	N & SMA
TDDC-00380200-50NS300	0.38~2	50	1.35	0.3	-	18	300	N & SMA
TDDC-00400060-50NS800	0.4~0.6	50	1.3	0.3	-	20	800	N & SMA
TDDC-00400080-40NS800	0.4~0.8	40	1.3	0.3	-	12	800	N & SMA
TDDC-00400100-30NS300	0.4~1	30	1.2	0.3	-	16	300	N & SMA
TDDC-00400250-50NS500	0.4~2.5	50	1.3	0.3	-	18	500	N & SMA
TDDC-00400300-20NS100	0.4~3	20	1.25	0.35	±1.0	18	100	N & SMA
TDDC-00400300-50NS500	0.4~3	50	1.6	0.3	-	18	500	N & SMA
TDDC-00400600-20S30	0.4~6	20	1.3	1.4	±1.4	10	30	SMA
TDDC-00400800-30NS250	0.4~8	30	1.5	0.8	±1.5	12	250	N & SMA
TDDC-00401200-40NS200	0.4~12	40	1.6	0.8	-	12	200	N & SMA
TDDC-00410049-50NS3KW	0.41~0.49	50	1.3	0.3	-	20	3000 (Peak Power)	N & SMA
TDDC-476M-50DN10KW	0.476±0.005	50	1.2	0.1	-	20	10KW (Peak Power)	DIN 7/16(L29) & N
TDDC-00500110-50DS2KW	0.5~1.1	50	1.5	0.3	-	18	2000	DIN 7/16(L29) & SMA
TDDC-00500200-40NS500	0.5~2	40	1.25	0.35	-	18	500	N & SMA
TDDC-00500200-40NS600	0.5~2	40	1.2	0.3	±1.0	20	600	N & SMA
TDDC-00500200-50NS800	0.5~2	50	1.35	0.3	-	18	800	N & SMA
TDDC-00500200-50DS1.5KW	0.5~2	50	1.3	0.35	-	18	1500	DIN 7/16(L29) & SMA
TDDC-00500200-50DS3KW	0.5~2	50	1.25	0.25	-	18	3000	DIN 7/16(L29) & SMA
TDDC-00500250-40NS500	0.5~2.5	40	1.35	0.3	±0.5	18	500	N & SMA
TDDC-00500300-20S100	0.5~3	20	1.3	0.7	±1.0	18	100	SMA
TDDC-00500300-30S100	0.5~3	30	1.3	0.7	±1.0	18	100	SMA
TDDC-00500300-40NS200	0.5~3	40	1.25	0.35	-	18	200	N & SMA
TDDC-00500300-50S100	0.5~3	50	1.3	0.5	-	16	100	SMA
TDDC-00500600-20N30	0.5~6	20	1.3	1.2	±1.0	20	30	N(m-f)
TDDC-00500600-20N150	0.5~6	20	1.3	0.8	±1.0	18	150	N
TDDC-00500600-20S50	0.5~6	20	1.3	0.6	±1.0	16	50	SMA
TDDC-00500600-30S100	0.5~6	30	1.3	0.5	-	-	100	SMA
TDDC-00500600-50N250	0.5~6	50	1.25	0.5	±1.0	10	250	N
TDDC-00500600-40NS250	0.5~6	40	1.25	0.5	-	10	250	N & SMA
TDDC-00500600-40NS300	0.5~6	40	1.25	0.5	±1.0	10	300	N & SMA
TDDC-00500800-10S30	0.5~8	10	1.6	2.5	±1.0	14	30	SMA
TDDC-00500800-20N30	0.5~8	20	1.5	1.2	±1.0	12	30	N
TDDC-00500800-20N150	0.5~8	20	1.3	0.8	±1.0	18	150	N
TDDC-00501275-20N30	0.5~12.75	20	1.5	1.8	±1.0	12	30	N
TDDC-00501800-10S50	0.5~18	10	1.6	3.3	±1.0	10	50	SMA
TDDC-00501800-13S10	0.5~18	13	1.4	1.2	±1.5	12	10	SMA
TDDC-00501800-20S30	0.5~18	20	1.5	2.2	±1.0	12	30	SMA
TDDC-00501800-10N50	0.5~18	10	1.7	2.5	±1.0	10	50	N
TDDC-00501800-20N50	0.5~18	20	1.7	2.0	±1.0	10	50	N
TDDC-00501800-20S50	0.5~18	20	1.6	2.2	±1.0	10	50	SMA
TDDC-00501800-30S50	0.5~18	30	1.6	2.0	±1.0	10	50	SMA
TDDC-00501800-30NS400	0.5~18	30	1.6	1.0	-	10	400	N & SMA
TDDC-00600270-50NS800	0.6~2.7	50	1.3	0.3	-	20	800	N & SMA
TDDC-00600270-50DS3KW	0.6~2.7	50	1.35	0.45	-	16	3000	DIN 7/16 & SMA
TDDC-00600500-20N150	0.6~5	20	1.3	0.8	±1.0	18	150	N
TDDC-00600600-20S30	0.6~6	20	1.3	1.0	±1.0	15	30	SMA
TDDC-00600800-40S30	0.6~8	40	1.5	0.4	-	12	30	SMA
TDDC-00700140-20S50	0.7~1.4	20	1.25	1.08	±1.0	18	50	SMA
TDDC-00700270-30N500	0.7~2.7	30	1.3	0.3	-	18	500	N
TDDC-00700600-35NS500	0.7~6	35	1.7	0.5	±1.0	12	500	N & SMA
TDDC-00700600-35NS500A	0.7~6	35	1.7	0.5	±1.0	12	500	N & SMA
TDDC-00700600-40N300	0.7~6	40	1.4	0.3	±0.75	16	300	N
TDDC-00700600-40NS300	0.7~6	40	1.4	0.2	±1.0	15	300	N & SMA
TDDC-00700600-40NS500	0.7~6	40	1.4	0.3	-	16	500	N & SMA
TDDC-00701200-20S20	0.7~12	20	1.3	1.6	±0.8	17	20	SMA
TDDC-00800300-50NS800	0.8~3	50	1.3	0.3	-	20	800	N & SMA
TDDC-00800420-50DN700	0.8~4.2	50	1.3	0.4	-	16	700	DIN 7/16 & N
TDDC-00950122-30N100	0.95~1.22	30	1.2	0.3	±0.3	20	100	N
TDDC-00950305-50NS500	0.95~3.05	50	1.45	0.4	-	18	500	N & SMA
TDDC-01000200-20N500	1~2	20	1.2	0.25	±0.5	20	500	N
TDDC-01000200-40DS1.3KW	1~2	40	1.2	0.3	-	18	1300	DIN 7/16 & SMA
TDDC-01000200-50NS800	1~2	50	1.3	0.2	-	20	800	N & SMA
TDDC-01000200-50DS1.5KW	1~2	50	1.3	0.3	-	18	1500	DIN 7/16 & SMA
TDDC-01000220-40NS400	1~2.2	40	1.2	0.25	±1.5	18	400	N & SMA
TDDC-01000300-50NS500	1~3	50	1.3	0.35	-	18	500	N & SMA
TDDC-01000400-20N30	1~4	20	1.3	1.2	±1.0	15	30	N
TDDC-01000400-30S50	1~4	30	1.2	0.35	-	20	50	SMA
TDDC-01000400-40DS800	1~4	40	1.4	0.3	-	15	800	DIN 7/16 & SMA
TDDC-01000400-40DS1KW	1~4	40	1.4	0.3	-	15	1000	DIN 7/16 & SMA
TDDC-01000600-10SN50	1~6	10	1.3	2.0	±1.0	18	50	N & SMA
TDDC-01000600-30S30	1~6	30	1.3	1.0	±1.0	15	30	SMA
TDDC-01000600-20S30	1~6	20	1.3	1.2	±1.0	12	30	SMA
TDDC-01000600-30N50	1~6	30	1.3	0.8	±1.2	15	50	N
TDDC-01000600-40N50	1~6	40	1.3	0.5	±1.0	16	50	N
TDDC-01000600-40N50A	1~6	40	1.3	0.6	±1.0	10	50	N
TDDC-01000600-40N200	1~6	40	1.3	0.5	±1.2	12	200	N
TDDC-01000600-40N500	1~6	40	1.3	0.5	-	18	500	N
TDDC-01000600-40NS500	1~6	40	1.7	0.5	-	12	500	N & SMA
TDDC-01000600-40DS1KW	1~6	40	1.7	0.5	-	12	1000	DIN 7/16 & SMA
TDDC-01000800-20N100	1~8	20	1.3	0.7	±1.0	12	100	N
TDDC-01000800-30NS500	1~8	30	1.3	0.3	±1.0	21	500	N & SMA
TDDC-01001200-20N100	1~12	20	1.4	0.9	±1.0	12	100	N
TDDC-01001800-10S10	1~18	10	1.5	1.8	±1.0	12	10	SMA
TDDC-01001800-20S10	1~18	20	1.5	1.8	±1.0	10	10	SMA
TDDC-01001800-20S50	1~18	20	1.5	1.0	±1.0	10	50	SMA
TDDC-01001800-20N50	1~18	20	1.6	1.0	±1.0	10	50	N
TDDC-01001800-30S50	1~18	30	1.5	1.0	±1.0	10	50	SMA
TDDC-01001800-30S60	1~18	30	1.7	1.0	-	9	60	SMA
TDDC-01001800-30N50	1~18	30	1.6	1.2	±1.0	10	50	N
TDDC-01004000-20K20	1~40	20	1.7	3.8	±1.2	10	20	2.92mm
TDDC-01100170-50DS1.5KW	1.1~1.7	50	1.2	0.3	-	18	1500	DIN 7/16 & SMA
TDDC-01200140-50DS1KW	1.2~1.4	50	1.3	0.3	-	25	1000	DIN 7/16 & SMA
TDDC-01400190-50NS500	1.4~1.9	50	1.3	0.3	-	23	500	N & SMA
TDDC-01700220-50NS250	1.7~2.2	50	1.3	0.3	-	20	250	N & SMA
TDDC-01800220-43NS500	1.8~2.2	43	1.3	0.3	-	18	500	N & SMA
TDDC-01800220-50NS500	1.8~2.2	50	1.3	0.3	-	18	500	N & SMA
TDDC-02000230-30NS500	2~2.3	30	1.5	0.3	-	16	500	N & SMA
TDDC-02000280-40NS300	2~2.8	40	1.3	0.25	-	20	300	N & SMA
TDDC-02000400-20N500	2~4	20	1.25	0.3	±0.5	20	500	N
TDDC-02000400-30N200	2~4	30	1.2	0.3	±0.5	18	200	N
TDDC-02000400-30N500	2~4	30	1.2	0.3	±0.5	18	500	N
TDDC-02000400-30N500A	2~4	30	1.3	0.3	±1.5	15	500	N
TDDC-02000400-40N500	2~4	40	1.3	0.3	±1.5	18	500	N
TDDC-02000420-40DS1KW	2~4.2	40	1.6	0.3	-	15	1000	DIN 7/16 & SMA
TDDC-02000500-45NS400	2~5	45	1.5	0.5	-	10	400	N & SMA
TDDC-02000500-50DS1KW	2~5	50	1.5	0.3	-	10	1000	DIN 7/16 & SMA
TDDC-02000600-30NS250	2~6	30	1.5	0.3	-	15	250	N & SMA
TDDC-02000600-40NS200	2~6	40	1.5	0.3	±0.5	15	200	N & SMA
TDDC-02000600-40DS400	2~6	40	1.5	0.3	±0.6	15	400	Mini DIN 4.3-10 &SMA
TDDC-02000600-40NS500	2~6	40	1.5	0.3	±0.5	15	500	N&SMA
TDDC-02000600-45DS650	2~6	45	1.5	0.3	-	12	650	DIN 7/16 & SMA
TDDC-02000600-55S80	2~6	55	1.5	0.3	-	15	80	SMA
TDDC-02000800-10S50	2~8	10	1.25	1.4	±1.0	18	50	SMA
TDDC-02000800-20S30	2~8	20	1.3	0.8	±1.0	18	30	SMA
TDDC-02000800-30S50	2~8	30	1.25	0.5	±1.0	18	50	SMA
TDDC-02000800-30NS400	2~8	30	1.5	0.25	-	14	400	N & SMA
TDDC-02000800-40NS150	2~8	40	1.7	0.3	-	12	150	N & SMA
TDDC-02000800-40SP150	2~8	40	1.6	0.4	-	15	150	SMA & SMP
TDDC-02000800-40NS400	2~8	40	1.5	0.25	-	14	400	N & SMA
TDDC-02000800-40DS600	2~8	40	1.6	0.5	±0.6	14	600	DIN 7/16(L29) & SMA
TDDC-02000800-40DS800	2~8	40	1.6	0.5	-	14	800	DIN 7/16(L29) & SMA
TDDC-02000800-45S80	2~8	45	1.4	0.3	-	12	80	SMA
TDDC-02001800-10S10	2~18	10	1.5	1.5	±1.0	12	10	SMA
TDDC-02001800-16S20	2~18	16	1.5	1.6	±1.0	12	20	SMA
TDDC-02001800-20S30	2~18	20	1.5	1.5	±1.0	12	30	SMA
TDDC-02001800-30S50	2~18	30	1.7	0.6	-	10	50	SMA
TDDC-02001800-30N50	2~18	30	1.5	1.0	±1.0	10	50	N
TDDC-02001800-30NS400	2~18	30	1.6	0.5	-	10	400	N & SMA
TDDC-02001800-35S80	2~18	35	1.5	0.6	-	15	80	SMA
TDDC-02001800-40S100	2~18	40	1.5	0.6	-	13	100	SMA
TDDC-02001800-40NS400	2~18	40	1.6	0.5	-	10	400	N & SMA
TDDC-02002650-20K20	2~26.5	20	1.5	2.4	±1.2	12	20	2.92mm
TDDC-02200230-43NS500	2.2~2.3	43	1.3	0.3	-	16	500	N & SMA
TDDC-02200230-50NS500	2.3~2.7	50	1.3	0.3	-	18	500	N & SMA
TDDC-02400620-40NS150	2.4~6.2	40	1.6	0.3	-	12	150	N & SMA
TDDC-02700350-50-600	2.7~3.5	50	1.4	0.2	-	18	600	Φ1.5 & Φ0.5 Pin
TDDC-02700350-50DS1.5KW	2.7~3.5	50	1.3	0.35	-	16	1500	DIN 7/16(L29) & SMA
TDDC-03001800-40S50	3~18	40	1.7	0.55	-	10	50	SMA
TDDC-03300380-50NS500	3.3~3.8	50	1.3	0.3	-	15	500	N & SMA
TDDC-03400480-20S10	3.4~4.8	20	1.3	0.9	±1.0	18	10	SMA
TDDC-04000510-40NS250	4~5.1	40	1.5	0.3	-	15	250	N & SMA
TDDC-04000800-30N50	4~8	30	1.25	0.9	±1.0	18	50	N
TDDC-04000800-40NS300	4~8	40	1.5	0.35	-	12	300	N & SMA
TDDC-04000800-50NS250	4~8	50	1.3	0.2	±1.0	18	250	N & SMA
TDDC-04000800-50NS250A	4~8	50	1.5	0.2	-	17	250	N & SMA
TDDC-04001500-30S30	4~15	30	1.4	1.2	±1.0	15	30	SMA
TDDC-04001800-20S20	4~18	20	1.5	0.9	±1.0	12	20	SMA
TDDC-04001800-20N50	4~18	20	1.5	1.0	±0.7	12	50	N
TDDC-04002000-10S5	4~20	10	1.5	2.0	±1.0	12	5	SMA
TDDC-04004000-20K20	4~40	20	1.6	2.2	±1.0	10	20	2.92mm
TDDC-05000600-50NS100	5~6	50	1.4	0.3	-	15	100	N & SMA
TDDC-05900750-40NS150	5.9~7.5	40	1.5	0.6	-	12	150	N & SMA
TDDC-06000800-37NS150	6~8	37	1.5	0.3	-	15	150	N & SMA
TDDC-06001000-40NS120	6~10	40	1.4	0.3	-	15	120	N & SMA
TDDC-06001800-30S30	6~18	30	1.5	0.9	±1.0	15	30	SMA
TDDC-06001800-30S50	6~18	30	1.5	0.9	±1.0	15	50	SMA
TDDC-06001800-35S80	6~18	35	1.7	0.5	-	10	80	SMA
TDDC-06001800-40S100	6~18	40	1.5	0.6	±1.5	15	100	SMA
TDDC-06001800-40NS100	6~18	40	1.5	0.5	-	12	100	N & SMA
TDDC-06001800-30NS200	6~18	30	1.8	0.5	-	10	200	N & SMA
TDDC-06001800-40NS200	6~18	40	1.6	0.5	±0.5	13	200	N & SMA
TDDC-06001800-40NS250	6~18	40	1.6	0.5	±1.0	12	250	N & SMA
TDDC-06001800-40NS250A	6~18	40	1.6	0.5	-	13	250	N & SMA
TDDC-06001800-40NS250B	6~18	40	1.7	0.5	-	10	250	N & SMA
TDDC-06004000-20K20	6~40	20	1.7	1.4	±1.0	10	20	2.92mm
TDDC-06004000-30K20	6~40	30	1.7	1.3	±1.0	10	20	2.92mm
TDDC-07001240-20S30	7~12.4	20	1.4	0.8	±0.5	15	30	SMA
TDDC-08001200-20S20	8~12	20	1.35	1.0	±0.7	20	20	SMA
TDDC-08001200-40NS200	8~12	40	1.5	0.7	-	13	200	N & SMA
TDDC-08001200-50250	8~12	50	1.5	0.3	-	14	250	SMP
TDDC-08001200-50NSP60	8~12	50	1.5	0.3	-	14	60	N, SMA & SMP
TDDC-08001600-30S50	8~16	30	1.5	1.0	±0.8	11	50	SMA
TDDC-08002650-10K30	8~26.5	10	1.6	2.5	±1.0	10	30	2.92mm
TDDC-08002650-15K30	8~26.5	15	1.5	1.5	±0.75	12	30	2.92mm
TDDC-08002650-20K30	8~26.5	20	1.6	1.6	±1.0	12	30	2.92mm
TDDC-09001050-50NS100	9~10.5	50	1.6	0.4	-	12	100	N & SMA
TDDC-10001400-20S30	10~14	20	1.4	1.5	±1.0	12	30	SMA
TDDC-12001800-35S80	12~18	35	1.7	0.5	-	10	80	SMA
TDDC-13701450-30S30	13.7~14.5	30	1.4	0.8	±0.5	18	30	SMA
TDDC-15001800-20S30	15~18	20	1.4	1.5	±1.0	16	30	SMA
TDDC-18004000-20K20	18~40	20	1.6	1.5	-	12	20	2.92mm
TDDC-18004000-20K30	18~40	20	1.7	2.2	±1.8	10	30	2.92mm
TDDC-18004000-30K20	18~40	30	1.7	1.5	-	10	20	2.92mm
TDDC-26504000-20K20	26.5~40	20	1.7	2.0	±1.0	10	20	2.92mm
TDDC-18006700-30V12	18~67	30	2.0	2.8	±1.2	5	12	1.85mm

SMD Directional Couplers

Model Number	Frequency Range (MHz)	VSWR	Insertion Loss (dB)	Coupling (dB)	Directivity (dB)	Coupling Flatness （±dB）	Power (W)	Dimensions (mm)
TM010T09-50	1.5~30	1.20	0.50	50	20	0.50	50	21×14×8
TM010T11-50	20~520	1.25	0.25	50	17	0.80	300	38.1×25.4×3.7
TM0126-50	20~1000	1.45	0.35	50	20	1.50	150	31.75×19.05×2.8
TMDC0500W50	20~1000	1.13	0.32	50	20	1.00	200	31.75×19.05×1.8
TMDC0510W50S	20~1000	1.10	0.25	50	20	1.00	200	20×17×1.8
TMDC0510W50	20~1000	1.20	0.30	50	20	1.00	300	38.1×25.4×3.3
TM0126-50-300	20~1000	1.25	0.35	50	18	1.00	300	38.1×25.4×3.7
TMDC0165W40	30~300	1.10	0.20	40	30	1.00	200	38.1×25.4×1.8
TMDC0275W40	30~512	1.10	0.42	40	30	1.00	200	38.1×25.4×1.8
TMDC0275W42	30~520	1.10	0.25	42	28	1.60	300	38.1×25.4×3.3
TMDC0275W45	30~520	1.10	0.20	45	25	1.00	300	38.1×25.4×3.3
TMDC0275W45S	30~520	1.10	0.15	46	28	1.00	200	25×17×1.8
TMDC0275W50	30~520	1.10	0.20	50	23	1.00	300	38.1×25.4×3.3
TMDC0275W50S	30~520	1.10	0.10	50	25	1.00	200	25×17×1.8
TMDC0365W46S	30~700	1.10	0.27	46	23	1.00	150	25×17×1.8
TM010T18-50	30~700	1.25	0.35	50	17	0.70	300	38.1×25.4×3.7
TMDC0290W40	60~520	1.10	0.15	40.5	25	1.00	200	38.1×25.4×1.8
TMDC0300W30	90~450	1.10	0.35	30.5	30	1.00	200	38.1×25.4×1.8
TMDC0300W32	90~520	1.10	0.28	32	30	1.30	200	38.1×25.4×1.8
TMDC0300W34S	90~520	1.10	0.25	34.2	25	1.00	200	25×17×1.8
TMDC0300W36	90~520	1.10	0.15	36	30	1.00	300	38.1×25.4×3.3
TMDC0300W36S	90~520	1.10	0.12	36.2	25	1.00	200	25×17×1.8
TMDC0300W40	90~520	1.10	0.10	40	25	1.00	300	38.1×25.4×3.3
TMDC0300W40S	90~520	1.10	0.10	40	25	1.00	200	25×17×1.8
TMDC0300W42	90~520	1.10	0.10	42	25	1.00	200	38.1×25.4×1.8
TMDC0300W50	90~520	1.10	0.10	50	25	1.00	200	38.1×25.4×1.8
TMDC0300W50H	90~520	1.10	0.05	50	28	1.00	500	38.1×25.4×3.3
TMDC0150B20	100~200	1.20	0.10	20	25	1.00	200	25.4×12.7×2.5
TM0188-40A	100~400	1.25	0.25	40	16	1.00	400	38.1×25.4×3.7
TM0188-40	100~520	1.25	0.25	40	18	1.00	300	38.1×25.4×3.7
TMDC0350B20	100~525	1.20	0.10	22	25	4.00	200	25.4×12.7×2.5
TMDC0400W38	100~700	1.15	0.20	40	25	1.00	300	38.1×25.4×3.3
TMDC0400W38S	100~700	1.10	0.10	40	25	1.00	200	20×17×1.8
TMDC0550W40	100~1000	1.15	0.20	41.5	25	1.00	300	38.1×25.4×3.3
TMDC0550W40S	100~1000	1.10	0.12	40	25	1.00	200	20×17×1.8
TMDC0550W50	100~1000	1.15	0.10	50	25	1.00	200	31.75×19.05×1.8
TM010T30-50D-100	100~2000	1.30	0.30	50	16	1.50	100	31.8×19.1×2.4
TMDC1050W45S	100~2000	1.15	0.32	47	15	1.00	150	20×17×1.8
TMDC1050W50	100~2000	1.10	0.28	52	18	2.00	300	38.1×25.4×3.3
TMDC0500W50	108~678	1.10	0.16	37.5	25	0.60	200	31.75×19.05×1.8
TMDC0510W50S	108~700	1.10	0.15	36	25	1.00	200	20×17×1.8
TM010T30-50D	108~2000	1.30	0.30	50	16	1.50	200	38.1×25.4×2.4
TMDC0165B30	120~210	1.20	0.10	30	23	1.00	200	25.4×12.7×2.5
TMDC0300L20	180~400	1.20	0.10	21.1	25	1.00	200	16.51×12.19×2.5
TMDC0350B20	180~520	1.20	0.10	20	21	2.00	200	25.4×12.7×2.5
TMDC0360W45	200~520	1.10	0.10	45	30	1.00	500	38.1×25.4×3.3
TM010501-47	200~1000	1.20	0.20	47	22	0.50	150	38.1×25.4×3.7
TMDC0600W36S	200~1000	1.10	0.08	36	30	1.00	200	20×17×1.8
TMDC0600W40S	200~1000	1.10	0.10	40	25	1.00	200	20×17×1.8
TMDC0590W36	200~1000	1.10	0.15	37	25	1.00	300	28.1×25.4×3.3
TMDC0600W36	200~1000	1.10	0.20	37	25	1.00	300	38.1×25.4×3.3
TMDC0590W40	200~1000	1.10	0.10	40	25	1.00	300	28.1×25.4×3.3
TM0142-40	200~1000	1.30	0.40	40	20	1.00	300	38.1×25.4×3.7
TMDC0600W40	200~1000	1.15	0.15	41	25	1.00	300	38.1×25.4×3.3
TM0127-24	200~2000	1.80	0.50	24	10	2.00	10	8.3×6.4×5
TM0127-45	200~2000	1.30	0.30	45	16	1.50	150	31.8×19.1×2.7
TMDC1100W45	200~2000	1.10	0.25	45	20	1.00	300	38.1×25.4×3.3
TMDC1300W42S	200~2400	1.20	0.30	42	25	1.00	150	20×17×1.8
TMDC0550W30S	225~800	1.10	0.25	30	20	1.00	200	20×17×1.8
TM0128-40	225~1250	1.30	0.40	40	16	1.50	300	38.1×25.4×3.7
TM010T03-45	225~2500	1.30	0.35	43	16	1.50	300	38.1×25.4×3.7
TM010T03-45A	240~550	1.30	0.30	43	20	1.00	300	38.1×25.4×3.7
TM010304-45	300~900	1.30	0.35	43	16	0.50	300	38.1×25.4×3.7
TMDC0700A25	300~1000	1.15	0.15	27	20	2.50	200	14.22×8.89×2
TMDC1150W42	300~2000	1.10	0.25	42	20	1.00	300	38.1×25.4×3.3
TMDC1200W40	300~2500	1.10	0.25	40	18	1.00	150	20×17×1.8
TMDC1650W42	300~2700	1.20	0.30	41	18	1.50	300	38.1×25.4×3.3
TMDC1650W40S	300~3000	1.20	0.26	40	23	1.20	150	20×17×1.8
TMDC0450A10	350~540	1.20	0.10	10	18	1.50	100	14.22×8.89×2
TMDC0450E20	350~540	1.10	0.10	20	22	1.00	100	14.22×5.08×2
TMDC1400W38S	400~2700	1.20	0.37	38	18	1.00	150	20×17×1.8
TMDC1500W36	500~2700	1.20	0.40	36.5	15	1.50	200	38.1×25.4×3.3
TMDC1750B10	500~3000	1.25	0.35	10.5	20	1.00	100	25.4×12.7×1.3
TMDC1750B15	500~3000	1.22	0.35	15.5	20	1.50	100	25.4×12.7×1.3
TMDC3200W42S	500~4200	1.20	0.35	41.5	12	1.00	150	20×17×1.8
TMDC0800A10	600~1000	1.20	0.10	10	18	1.00	200	14.22×8.89×2
TMDC0800A20	600~1000	1.20	0.10	20	21	2.00	200	14.22×8.89×2
TMDC1700B15	680~2700	1.15	0.20	15	25	1.50	150	25.4×12.7×1.3
TMDC1700B20	680~2700	1.15	0.20	20	23	1.20	150	25.4×12.7×1.3
TMDC1700B25	680~2700	1.18	0.20	25	23	1.00	150	25.4×12.7×1.3
TMDC1700B30	680~2700	1.15	0.20	30	23	1.00	150	25.4×12.7×1.3
TMDC1700B35	680~2700	1.15	0.20	35	22	1.00	150	25.4×12.7×1.3
TM010017-40D	700~1224	1.30	0.15	30	20	0.80	300	65×35×10
TF010006-30D	700~1300	1.30	0.30	30	15	1.00	500	65×35×10
TM010305-20	700~2600	1.30	0.30	20	18	1.00	100	25.4×12.7×1.8
TM010309-35	700~2700	1.30	0.30	35	15	1.10	150	25.4×12.7×1.3
TMDC0900E20	800~1000	1.10	0.10	20	25	1.00	100	14.22×5.08×2
TMDC0900E30	800~1000	1.10	0.10	30	25	1.00	100	14.22×5.08×2
TMDC0900A10	800~1000	1.20	0.10	10	20	1.00	200	14.22×8.89×2
TMDC0900A20	800~1000	1.20	0.10	20	25	1.00	200	14.22×8.89×2
TMDC0900A30	800~1000	1.10	0.10	30	25	1.00	200	14.22×8.89×2
TMDC0900B30	800~1000	1.10	0.10	30.2	26	0.50	355	25.4×12.7×2.5
TM0193-18	800~2000	1.25	0.40	18	16	0.60	150	25.4×12.7×1.8
TMDC1900E10	800~2650	1.25	0.15	12	20	2.50	100	14.22×5.08×2
TMDC1900B25	800~3000	1.20	0.20	25	22	1.00	150	25.4×12.7×1.3
TMDC3400W42S	800~6000	1.20	0.50	42	10	2.00	100	20×17×1.8
TM010210-45	900~1800	1.30	0.35	43	16	0.50	300	38.1×25.4×3.7
TMDC1200W40	1000~2000	1.15	0.25	35	18	1.00	150	20×17×1.8
TMDC1500A10	1000~2000	1.40	0.10	10	20	1.50	200	14.22×8.89×2
TMDC1500A20	1000~2000	1.20	0.10	20	20	2.00	200	14.22×8.89×2
TMDC1500A28	1000~2000	1.15	0.10	28	25	2.00	200	14.22×8.89×2
TMDC1500A30	1000~2000	1.10	0.10	30	30	2.00	200	14.22×8.89×2
TM0131-30D	1000~2000	1.40	0.35	30	15	1.00	300	50×40×9
TM0131-10	1000~2000	1.28	0.35	10	15	1.25	160	14.2×8.9×2.4
TM0131-20	1000~2000	1.28	0.25	20	16	0.70	160	14.2×8.9×2.4
TM0138-30D	1000~2500	1.40	0.35	30	15	1.20	300	50×40×9
TMDC2500B25	1000~4000	1.20	0.20	25	20	1.20	150	25.4×12.7×1.3
TM013057-35D	1087~1093	1.30	0.12	35	30	0.50	50	46.4×22×10
TM0161-30	1100~1700	1.30	0.35	30	15	1.00	300	50×40×9
TMDC1950A20	1300~2600	1.20	0.10	20	20	1.50	200	14.22×8.89×2
TMDC2100A20	1400~2800	1.15	0.13	20	25	2.00	200	14.22×8.89×2
TMDC1900A10	1700~2100	1.20	0.10	10	22	1.00	200	14.22×8.89×2
TMDC1900A20	1700~2100	1.20	0.10	20	25	1.00	200	14.22×8.89×2
TMDC1900A30	1700~2100	1.20	0.10	30	25	2.00	200	14.22×8.89×2
TMDC2500E10	1700~2800	1.20	0.15	10	20	1.00	100	14.22×5.08×2
TMDC2200E20	1700~2800	1.20	0.10	20	20	1.00	100	14.22×5.08×2
TMDC2100A10	1800~2400	1.20	0.10	10	23	1.00	200	14.22×8.89×2
TMDC2100A30	1800~2400	1.20	0.10	30	25	1.00	200	14.22×8.89×2
TM0132-25	2000~4000	1.30	0.30	25	18	0.90	300	45×17×9
TMDC3000A20	2000~4000	1.25	0.20	20	20	1.00	200	14.22×8.89×2
TM0132-20	2000~4000	1.30	0.25	20	18	0.90	100	14.2×8.9×1.8
TM0146-25D	2000~6000	1.40	0.30	25	15	0.80	150	14.2×25.4×2.5
TMDC4000A20	2000~6000	1.40	0.55	21	18	1.50	200	14.22×8.89×2
TM0145-10	2300~2700	1.22	0.25	10	18	0.75	20	6.4×5.1×1.9
TMDC4250A20	2500~6000	1.40	0.45	20	20	1.00	200	14.22×8.89×2
TM013011-40D	4400~5000	1.50	0.30	40	15	0.40	60	20×18×9
TM013056-40	5000~8000	1.40	0.40	40	15	0.80	200	25×30×11
TM016009-40D	14300~14800	1.40	0.30	40	16	0.50	50	30×20×10

Prev: 90° Hybrid Couplers (Module, SMD) Next: Single Directional Couplers

+86 183 1201 5097

Dual Directional Couplers

Contact Us:
